The new ultrasonic system consists of the following components: up to 32 ultrasonic transducers with a variable-length holding system, single-channel electronics with 32x multiplexer, a magnetic field tracking system and software for system control and tomography calculation. Figure 1 shows the ultrasound system mounted on a marble colomn of the Marmorpalais in Potsdam. The support system with the ultrasonic transducers (green) is mounted on the marble column, the electronics on the table in the background and the magnetic field generator on the wooden stand.

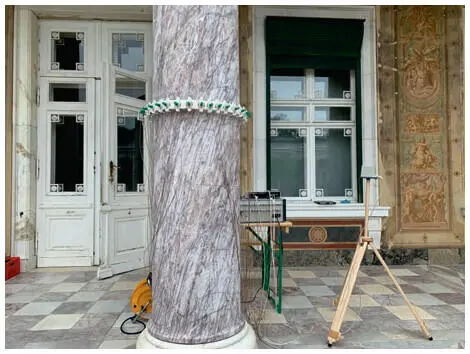

Figure 1: the new system on a column of the Marmorpalais in Potsdam.

The ultrasonic sensors allow the system to determine times of flight in moderately weathered marble up to approx. 1 m thickness. The opening angle is approx. 60° and the aperture is 9 mm. In this way, the sound, which is coupled in at one point of the test object, can be received again on as many alternative positions on the object as possible. This ideally supports the planned tomographic measurement procedure. The transducer itself is as small and lightweight as possible, so that a high density of sensors can be achieved on the object to be measured without applying too much stress on the holding system or the object itself. Therefore and in order not to influence the magnetic field tracking, the housing of the sensors is made of polymer. In addition, the housing has a specially shaped end plate for safe contacting of a magnetic field sensor by a clamp. It is also important that the sensor can be coupled dry to the marble so that the object itself is not contaminated by a coupling medium. The transducer consists of a 200 kHz ceramic disc on a soft carrier. To optimize the energy transfer, an acoustic matching layer and a coupling layer made of soft polymer, which cannot be rubbed off by the marble, are applied.

The variable-length holding system consists of sensor plates that hold the sensors and flexible polymer connectors (figure 2). The sensor plates have the possibility to mount additional support screws. This prevents vertical tilting of sensor and belt at 241the measuring object. The belt system can be assembled individually for each measuring object. By using flexible connecting elements of different lengths, a more or less high sensor density can be selected if required, or the overall length can be adjusted to suit the object.

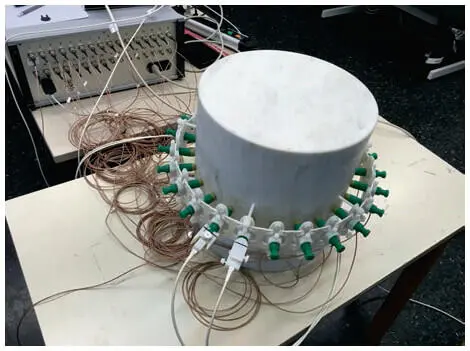

Figure 2: holding system with sensors on a marble cylinder.

The electronics consists of a single-channel transmitter and receiver unit that can generate transmission voltages of up to 1,000 Vpp and a multiplexer capable of switching 32 sensors to transmit or receive. The transmission voltage of up to 1,000 Vpp is provided by a transformer. Together wit the adjustable input gain of the electronic, the adjustable output power allows to adjust the received signal. The transformer has two primary windings and one secondary winding. The Amidon BN43-5170 suitable for the frequency range was selected as the core material. The two primary windings are connected in series. An adjustable DC voltage (0 to 48 V) is applied to the connection node. The other two ends of the primary winding are connected to a push-pull transistor circuit. Both transistors can independently connect the windings to ground. The transistors are controlled by a logic, that allows the frequency and signal coding to be adjusted. The maximum secondary output voltage can be varied by this principle adjustable over the primary DC voltage. The multiplexer has 32 channels to drive 32 ultrasound transducer. The multiplexer circuit consists of 32 switching elements, which can be switched on and off in transmit or receive regime independently. Since this application involves transmission voltages of up to 1000 Vpp, the multiplexer components of the HV series MicroChip used in standard systems could not be used. Therefore, discrete switching elements in the form of a “Solid State Power Relay” (CPC1988 of the manufacturer IXYS) were used. This is a MOSFET technology with an integrated opto-coupler. The 32 relay modules arranged in two banks are controlled by a multiplexer from Maxim. Their outputs are directly connected to the optically coupled input of the CPC1988. All outputs of the multiplexer can be activated by a microcontroller via its serial interface.

If a CPC1988 is in the “off” state, its optical control input is connected to ground by means of the Maxim multiplexer which prevents unintentional switch-on. To protect the CPC1988 switches from impermissibly high voltage peaks, a SMAJ440CA suppressor diode is connected in series.

The received signals of the 32 ultrasonic transducers can be connected to the input amplifier via four 8-channel Maxim multiswitches (MAX4598). Any switch positions are possible. To protect the multiswitches from high voltages (especially the transmit voltage), diode limiters are connected in series.

The individual transducer can be connected to the multiplexer via BNC connectors. On the back there is also a USB interface for connection to an external PC as well as a mains plug with switch. LEDs on the front of the housing indicate the current operating status of the system.

Position detection is carried out with the trakSTAR 2 system from Ascension Inc. The electromagnetic method offers a simple method of determining both the position and orientation of an object in space. In electromagnetic tracking, a magnetic field is generated within 1 m 3. The objects to be measured are marked with tracking sensors. These sensors determine their position and position on the basis of the magnetic field lines in which they are located. Since up to 32 ultrasonic transducers cannot be equipped with sensors and the working range of the magnetic field generator is not sufficient to detect all positions from one location without errors, a new algorithm has been developed in which only 2 sensors are necessary, which are successively attached to two adjacent ultrasonic transducers and the position of the generator can be changed. The active surface of the first transducer defines the coordinate origin. All other positions are measured relative to this. However, the tomographic algorithms assume a two-dimensional problem, therefore the points are transformed into a best-fit plane. As an alternative to magnetic field tracking, optical position detection using Aruco markers was developed.

Due to the inhomogeneity and scattering events in marble, there are a large number of paths and therefore also times of flight from the transmit to the receive transducer. As a result, the detected 242sound wave is a superposition of all incoming sound waves and therefore very long in time. For tomographic reconstruction, however, only the linear propagation is of interest as an input parameter. In a first approximation it is assumed that this wave also arrives at the receiver first. Therefore it is necessary to detect the beginning of the recorded signals. One way of detection is the cross correlation method. The correlation result describes the similarity of two signals. A measured transmission signal through water is used as the reference signal (kernel). The spectrally filtered signal is correlated with the kernel, the envelope is calculated and its first peak above a threshold value is determined. The detection of the signal beginning now results from the detection of the peak under consideration of the size of the correlation kernel.
