Digital Workflow in Reconstructive Dentistry

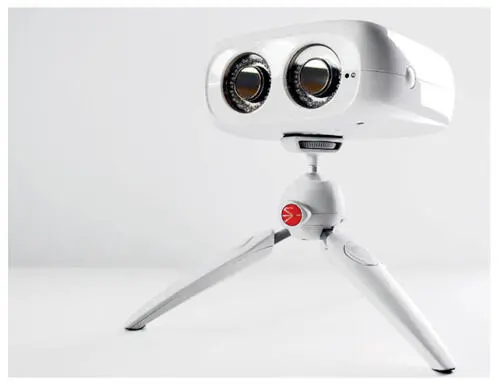

Fig 2.13PIC camera for implant position capture via photogrammetry. The capturing device is equipped with two CCD cameras. Illumination of the scan abutments is performed by infrared flashes surrounding the lenses.

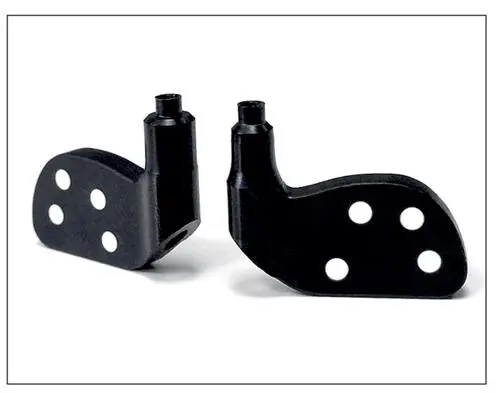

Fig 2.14Flag-shaped PIC abutments, which are screw-retained onto the implants for the capturing procedure. Each abutment is uniquely dot-coded to allow easy identification of each implant.

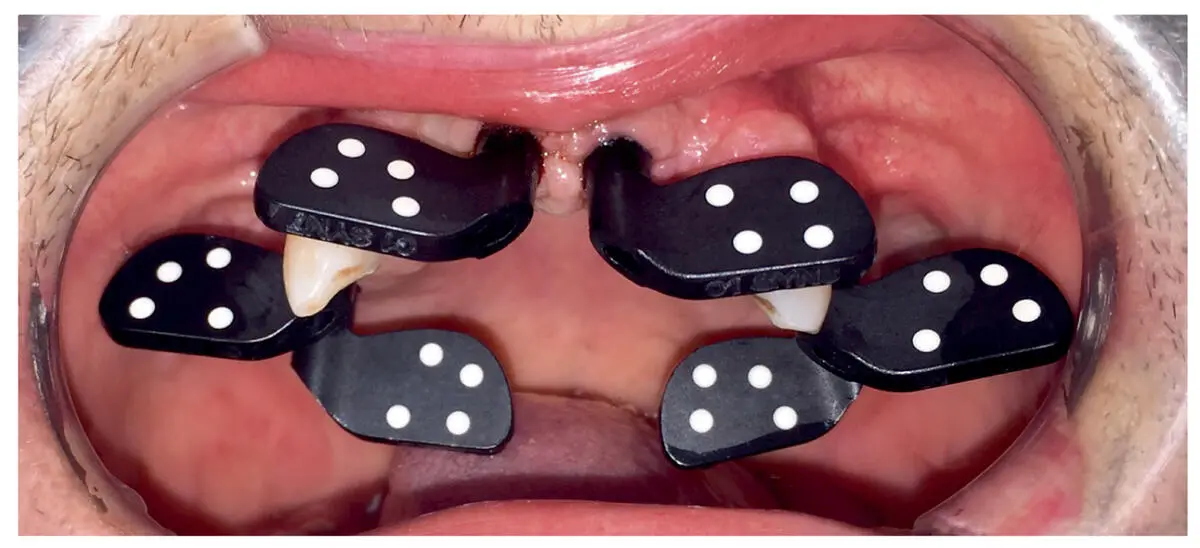

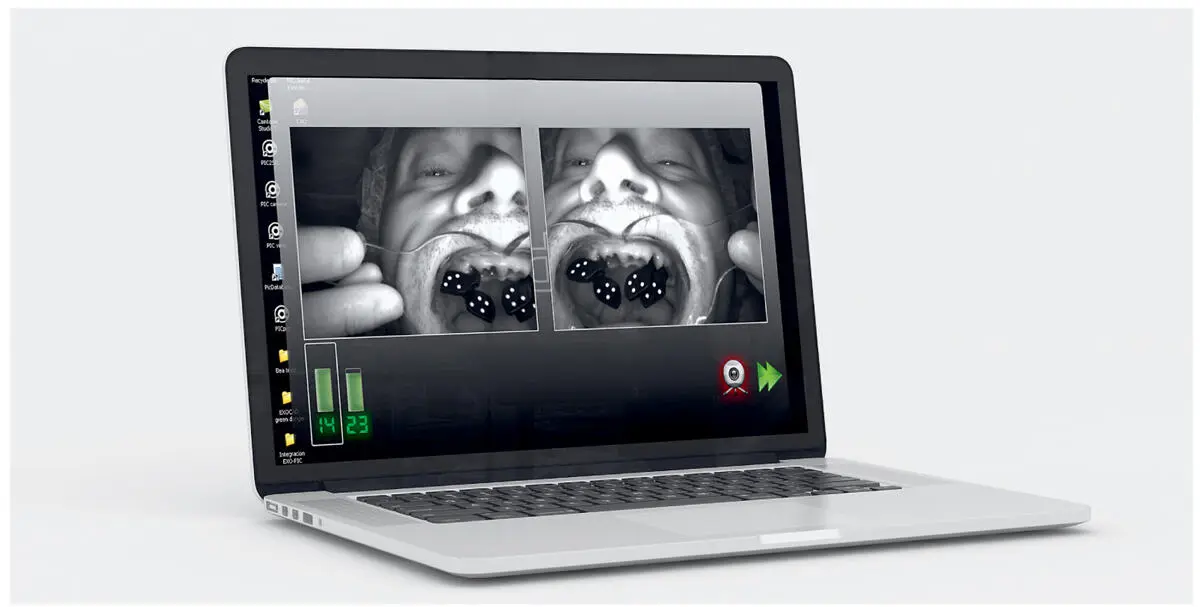

Fig 2.15Clinical example demonstrating the positioning of PIC abutments onto different implants. The PIC camera captures the 3D positions and angulations of implants and via the coded abutments.

Fig 2.16The PIC software processes information about the angles and distances between implants. The data is then interrelated and treated as a unit to create a PIC file. Further steps include soft issue registration (e.g., IOS scan) and matching with the PIC file.

Based on clinical experience, the photogrammetry technique seems to provide reliable, fast, and comfortable digital acquisition of implant information. While the manufacturer claims an error range of less than 10 microns with the technology, studies about the accuracy of the data acquired from different clinical scenarios are still lacking.

Current Indications and Future Possibilities of IOS Systems

While the first generation of IOS systems was only indicated for the fabrication of inlays, contemporary IOS systems offer the possibility to fabricate a wide spectrum of fixed restorations, including inlays, onlays, veneers, single crowns, and fixed partial dentures (FPDs) ( Table 2.3). Due to the current software and hardware configurations, the number of fixed partial denture units varies from one IOS system to the next. Depending on the system, the options of restorative materials can also vary from resins, nonprecious/precious metal alloys, and ceramics, to high-strength ceramics. The fabrication process can be either subtractive (milling or grinding) or additive (stereolithography, 3D printing, selective laser sintering, and so on). For the fabrication of high-strength ceramic restorations, subtractive procedures are the currently available manufacturing techniques. On the other hand, a limited number of IOS systems, including related CAD/CAM techniques, claim that they have expanded the indications from the fabrication of fixed restorations to removable partial dentures or even complete dentures (e.g., Omnicam and True Definition Scanner; see Table 2.4). Other systems can provide the possibility of implementing CAI for the production of implant surgical splints (e.g., 3Shape TRIOS). Regarding implant restorations, the majority of IOS systems support such an option with the help of scan bodies. The number and type of implant restorations are completely software dependent. The same concept follows the 3Shape TRIOS Scan IOS system to fabricate post-and-core restorations, via optical capturing of scanning flacks (3Shape Scan Post, 3Shape), which are provided in different lengths and diameters ( Fig 2.17). Finally, some IOS systems, such as 3Shape TRIOS and iTero, extend their indication range to orthodontics, allowing not only the digitization of the procedure through the fabrication of an orthodontic appliance, but also digital analysis of the pretreatment situation and the treatment planning.

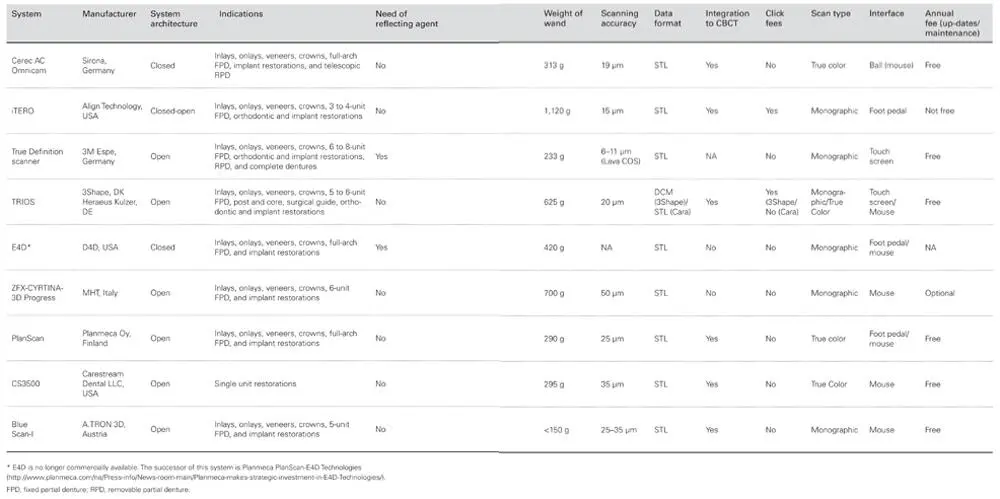

Table 2.3Overview of different features and indications of commercially available intraoral scanner systems (information provided by the manufacturer may vary depending of device/software version and service strategy of manufacturer)

Table 2.4Guide to available intraoral scanners with links to manufacturers (modified from Jokstad 17)

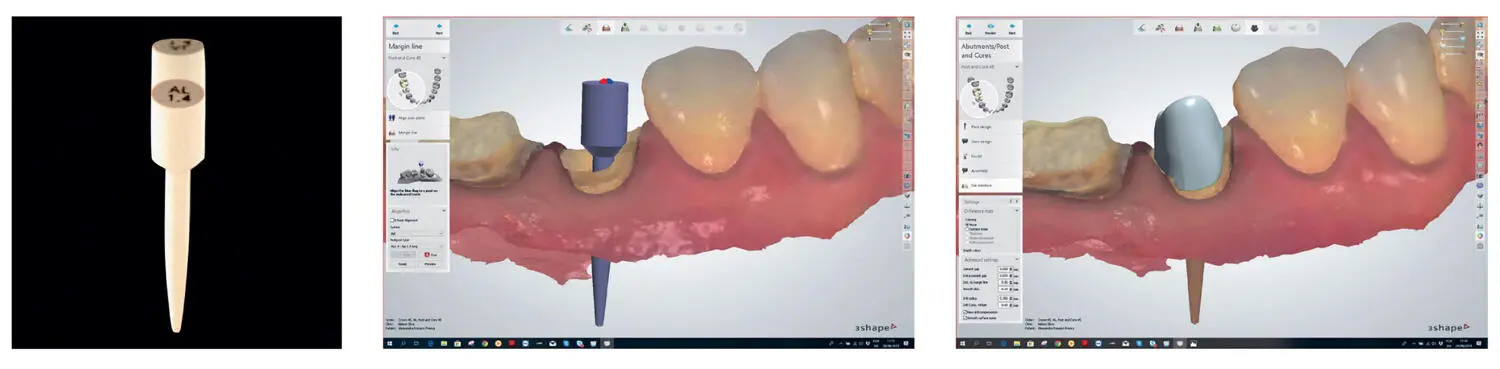

Fig 2.17The 3Shape Scan Post system is approved for both intraoral application in the clinic and for model scanning in the laboratory; courtesy of Nelson Silva, Rodrigo Albuquerque, Luis Morgan, UFMG, Belo Horizonte, Bazil.

In summary, the current possibilities of IOS systems and their relatively wide indication spectrum, as well as software compatibility (open STL format), are gaining widespread acceptance in the dental community.

Hence, the current IOS systems can still be considered as a blueprint for future systems. Current research focuses on the extension of the indication range of IOS systems to include edentulous jaws. Once established, the fabrication of removable partial dentures, including complete dentures, would be possible using IOS systems. More interesting, the introduction of advanced imaging technologies such as optical coherence tomography (OCT) that are being used in other medical specialties (e.g., cardiology, ophthalmology, and dermatology) will facilitate the possibility for IOS systems to perform transgingival scans. In other words, this technology will allow CAI to be performed without placing retraction cords. 61,62A further technology that is still under development implements high-frequency ultrasound for intraoral scans (WhiteSonic, Mannheim, Germany). The manufacturer claims improved signal processing compared to existing IOS systems. Model-based concepts combined with powerful and intelligent algorithms make it possible to scan subgingival structures, such as preparation margins and bone. With such innovations, CAI will rapidly replace conventional techniques.
