Gradient recalled echo imaging is the second most common type of imaging sequence after the spin‐echo. This sequence is very susceptible (more than spin‐echo T2) to magnetic field inhomogeneity and is commonly used in the brain to identify blood products, metal deposition such as iron, manganese, and nonmetals such as calcium. This sequence is very sensitive but not specific. The “flip angle” used in obtaining GRE can be altered, resulting in either T1 weighted (long flip angle) or T2 weighted (short flip angle) images ( Figure 2.10).

Short tau inversion recovery (STIR) is commonly acquired because of its very high sensitivity to fluid and readily detects subtle edema in tissues. When acquired in the conventional method, it also results in nulling the fat signal, thereby further increasing the signal of tissue fluid relative to background. This is the best sequence for edema, particularly when trying to determine bone invasion by tumors. It can also be useful in assessing skull base foramina ( Figures 2.11and 2.12).

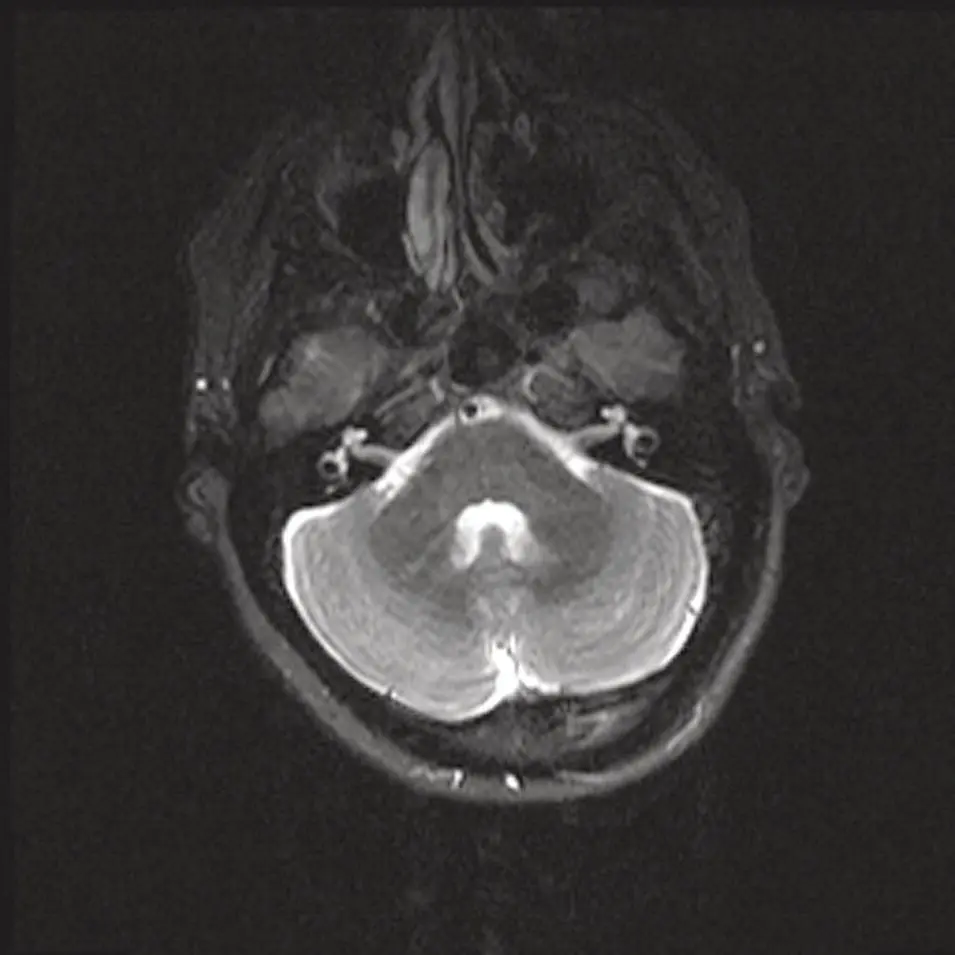

Figure 2.9. Axial MRI FSE T2 weighted image demonstrating the high signal of CSF and subcutaneous fat, intermediate signal of the brain and mucosa, and the low signal in the arteries.

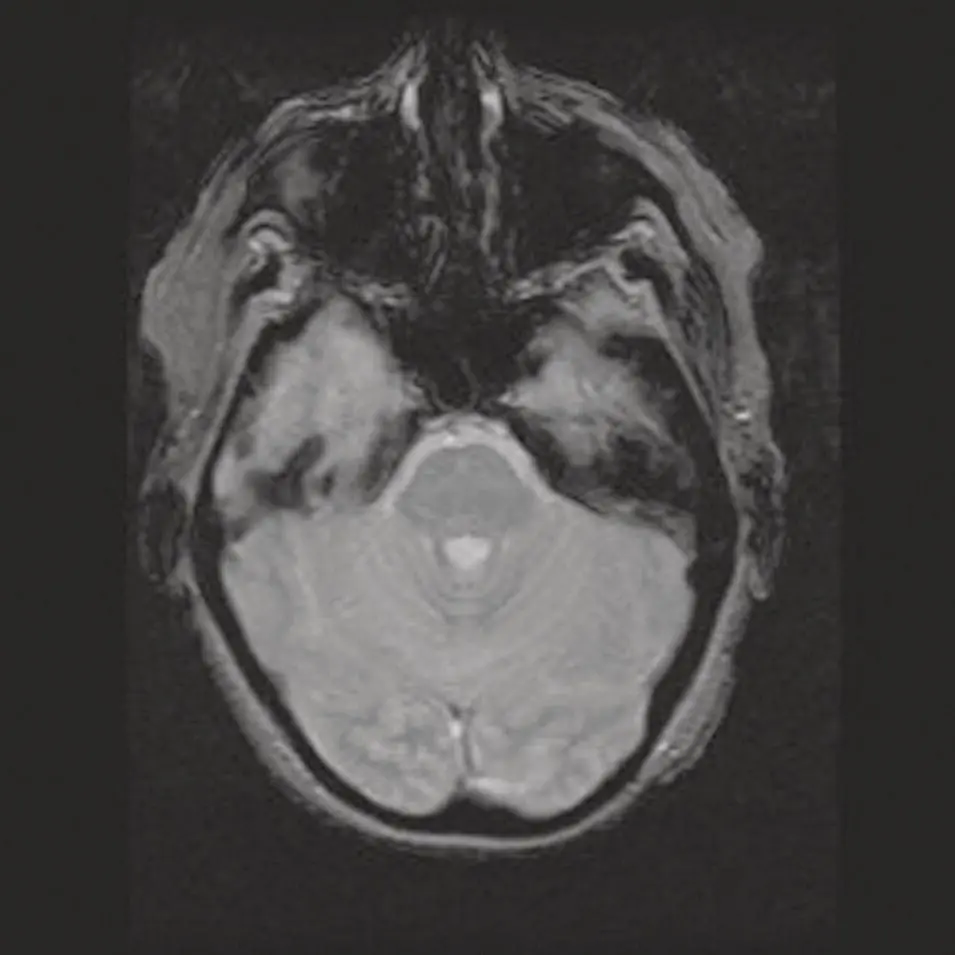

Figure 2.10. Axial MRI GRE image.

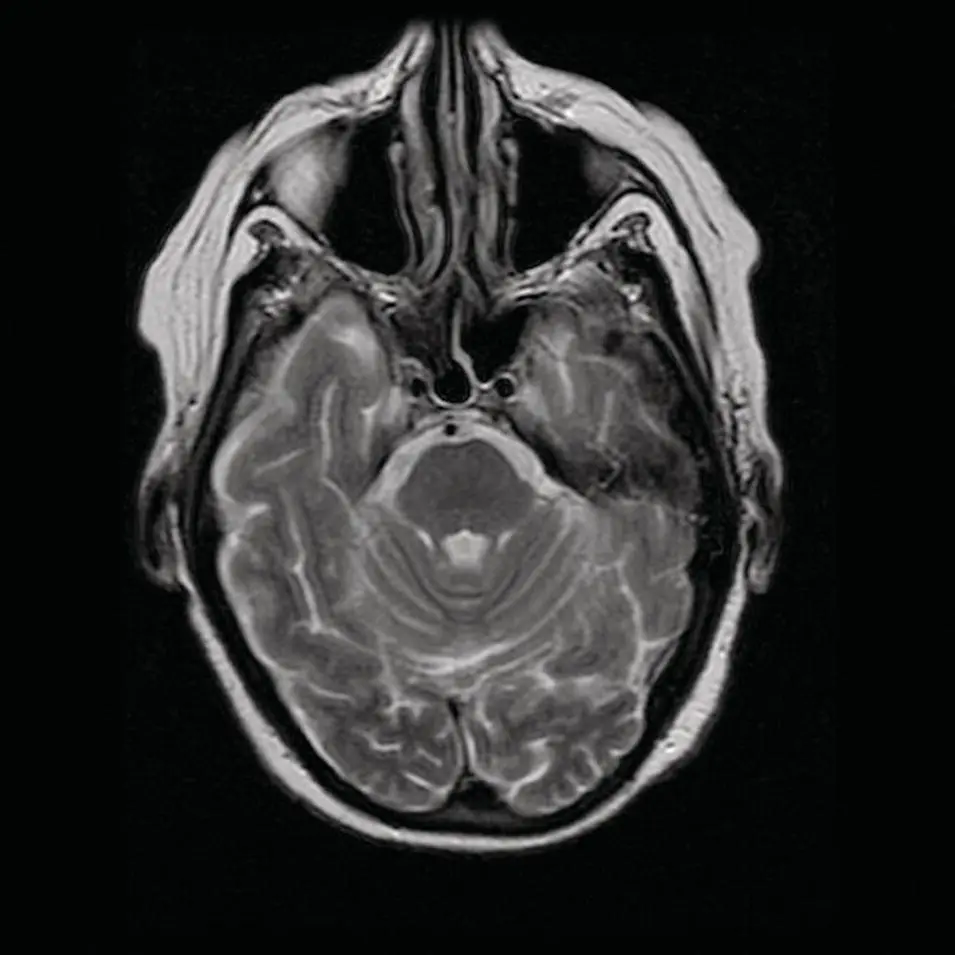

Figure 2.11. Axial MRI STIR image at the skull base demonstrating the high signal of CSF but suppression of subcutaneous fat signal.

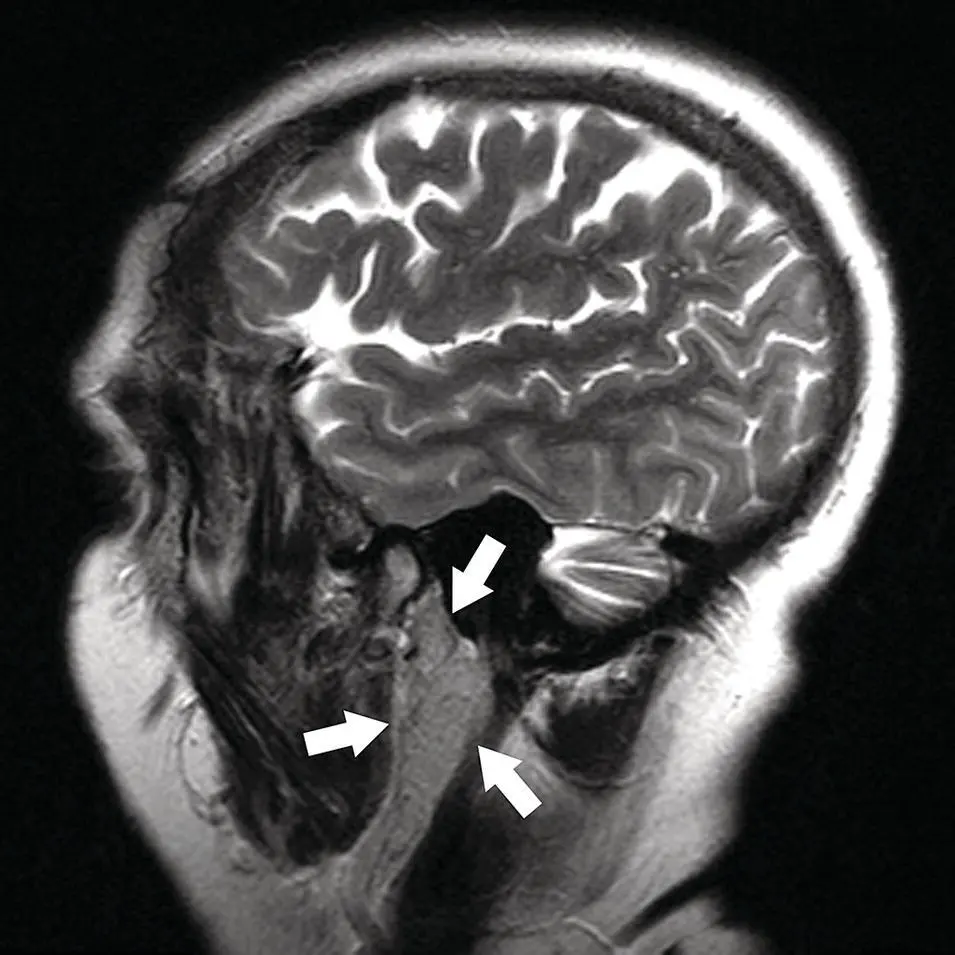

Figure 2.12. Sagittal MRI STIR image at the level of the parotid gland demonstrating the deep lobe seen through the stylomandibular tunnel (arrows). Note the parotid gland extending superiorly to the skull base.

Intravenous contrast with gadolinium, a paramagnetic element, alters (shortens) T1 and T2 relaxation times, which results in a brighter signal. Its effect is greater on T1 than on T2 weighted images. Areas of tissue that accumulate Gd will have a higher or brighter signal and “enhance.” In the head and neck, post‐contrast T1 images should be produced with fat saturation to null the fat signal and therefore increase the signal of Gd accumulation ( Figure 2.13).

Fluid attenuation inversion recovery (FLAIR) is not as commonly used in the neck but is a necessity in brain imaging. By nulling the CSF signal, brain tissue edema from a variety of causes stands out and is easily identified. It is however not specific. FLAIR can be useful for assessing skull base or foraminal invasion by tumors. However, artifacts can result from CSF pulsation or high FiO 2administration and can mimic pathologic processes such as subarachnoid hemorrhage, or meningitis (bacterial, carcinomatous, viral, or aseptic) ( Figure 2.14).

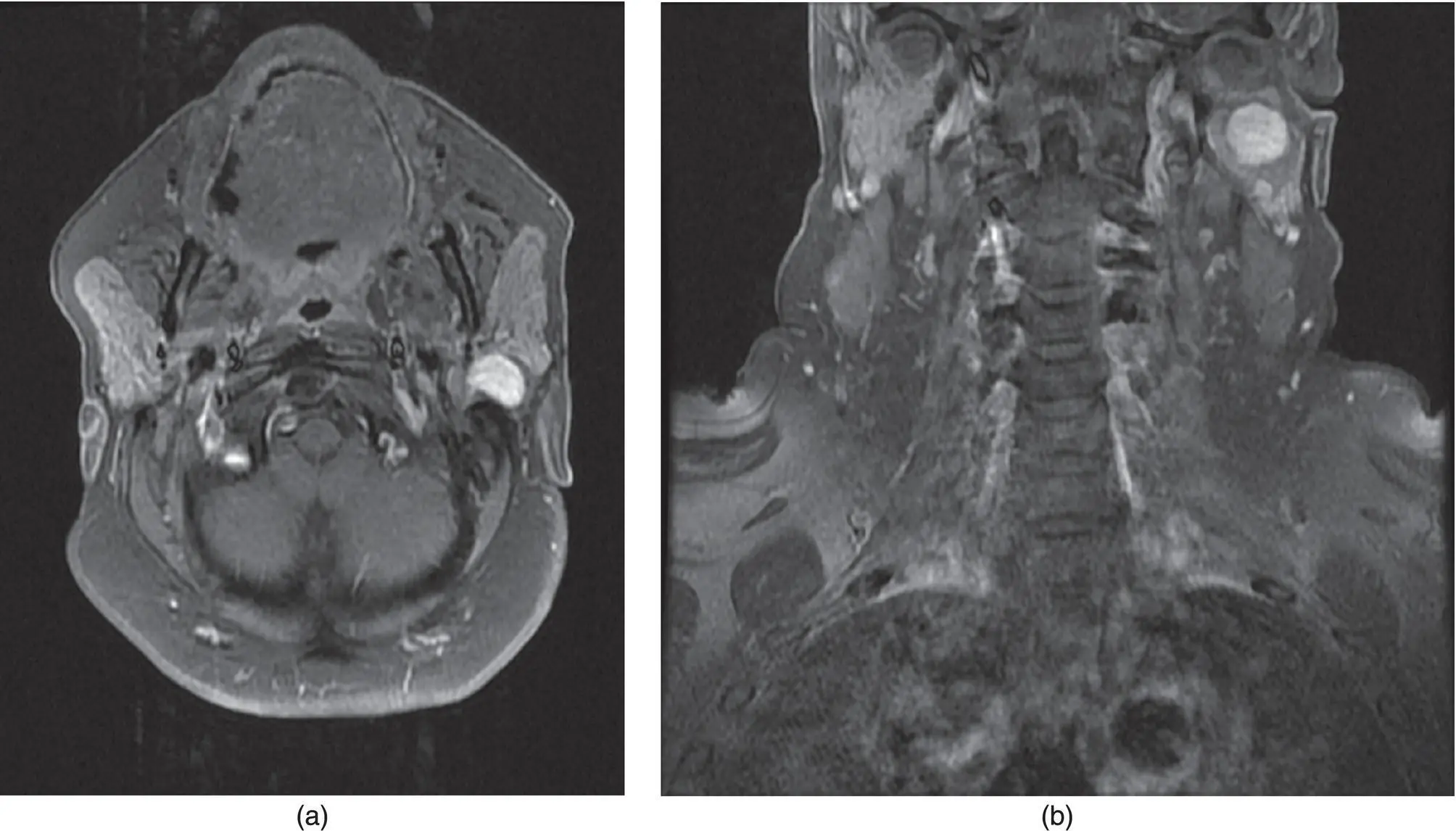

Figure 2.13. Axial (a) and coronal (b) MRI T1 post‐contrast fat saturated image demonstrating a mass in the left parotid gland. Note the mild vascular enhancement and suppression of fat high signal on T1 weighted image.

Diffusion weighted images are not routinely clinically used in the neck or head but are indispensable in the brain. Typical intracranial application is for assessing acute stroke, but can be applied for the assessment of active multiple sclerosis (MS) plaques, and abscesses ( Figure 2.15). The concept of DWI is based on the molecular motion of water and the sensitivity of certain MRI sequences to detect the diffusion or movement of water in tissues at the cellular level.

The use of DWI and specifically apparent diffusion coefficient (ADC) values and maps for salivary gland imaging are under investigation and show promise in differentiating benign from malignant tissues (Shah et al. 2003; Abdel‐Razek et al. 2007; Eida et al. 2007; Habermann et al. 2007). The ADC values are affected by technical factors (b‐value setting, image resolution, choice of region of interest, susceptibility artifacts, and adequate shimming) as well as physiologic factors (biochemical composition of tumors, hemorrhage, perfusion, and salivary flow) (Eida et al. 2007). The ADC values of salivary glands change with gustatory stimulation. Although mixed results have been reported, there is generally an increase in the ADC value from pre‐stimulation to post‐stimulation measurements (Habermann et al. 2007). The normal parotid, submandibular, and sublingual glands have measured ADC values of 0.63 ± 0.11 × 10 −3mm 2/s, 0.97 ± 0.09 × 10 −3mm 2/s, and 0.87 ± 0.05 × 10 −3mm 2/s, respectively (Eida et al. 2007). In pleomorphic adenomas, the ADC maps demonstrate areas of cellular proliferation to have intermediate ADC levels and areas of myxomatous changes to have high ADC values (Eida et al. 2007). Warthin's tumor showed lymphoid tissue to have a very low ADC, necrosis with intermediate ADC, and low ADC in cysts among the lymphoid tissue (Eida et al. 2007). Among the malignant lesions, mucoepidermoid carcinoma shows low ADC in a more homogenous pattern whereas the adenoid cystic carcinomas demonstrated a more speckled pattern with areas of low and high ADC likely from multiple areas of cystic or necrotic change (Eida et al. 2007). Lymphoma in salivary glands has been demonstrated to have a diffuse extremely low ADC likely from the diffuse uniform cellularity of lymphoma (Eida et al. 2007). In general, cystic, necrotic, or myxomatous changes tend to have higher ADC and regions of cellularity, low ADC. Malignant tumors tend to show very low to intermediate ADC whereas benign lesions have higher ADC, but with heterogenous pattern. Overlaps do occur for example with Warthin's tumor demonstrating very low ADC regions and adenoid cystic carcinoma with areas of high ADC (Eida et al. 2007).

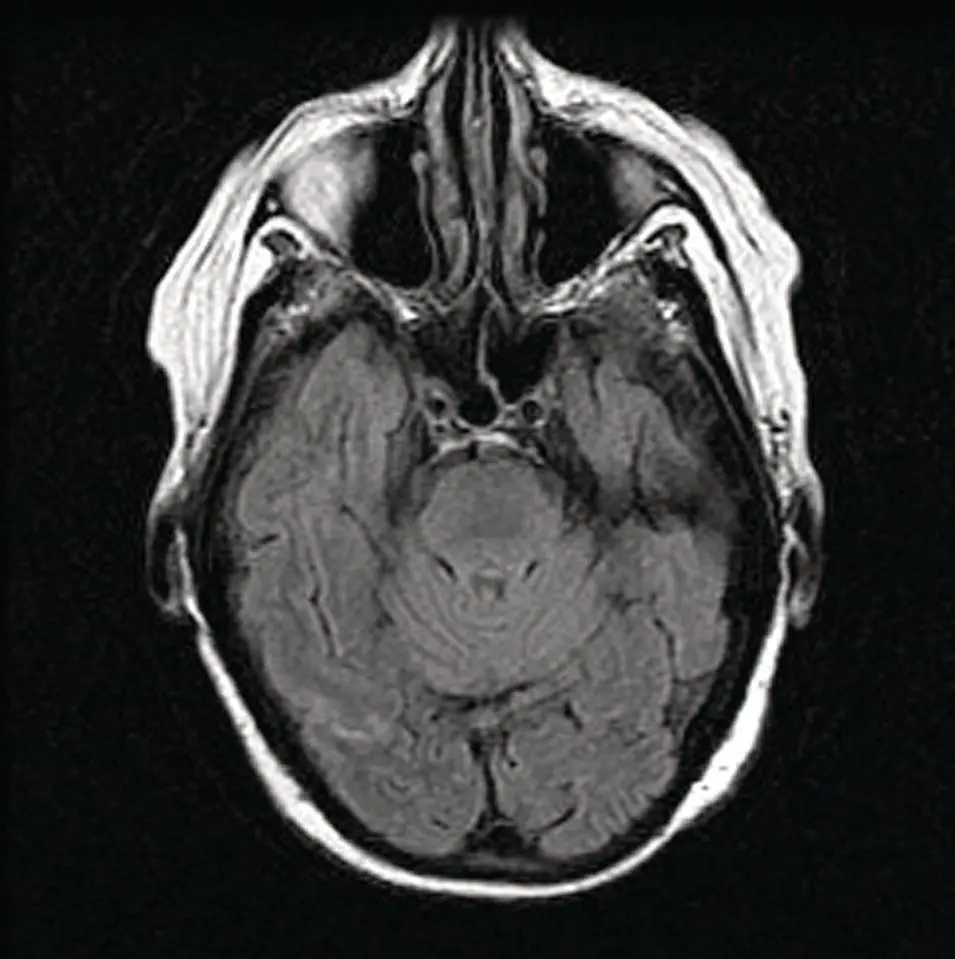

Figure 2.14. Axial MRI FLAIR image at the skull base demonstrating CSF flow‐related artifactual increased signal in the right prepontine cistern.
