For example, an ISR for an I/O device retrieves data from a device and routes the data to a dedicated processing task. The ISR neither solicits nor requires feedback from the processing task. By contrast, in tightly coupled communication, the data movement is bidirectional. The data producer synchronously waits for a response to its data transfer before resuming execution, or the response is returned asynchronously while the data producer continues its function.

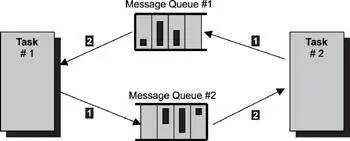

Figure 15.5: Tightly coupled task-to-task communication using message queues.

In tightly coupled communication, as shown in Figure 15.5, task #1 sends data to task #2 using message queue #2 and waits for confirmation to arrive at message queue #1. The data communication is bidirectional. It is necessary to use a message queue for confirmations because the confirmation should contain enough information in case task #1 needs to re-send the data. Task #1 can send multiple messages to task #2, i.e., task #1 can continue sending messages while waiting for confirmation to arrive on message queue #2.

Communication has several purposes, including the following:

· transferring data from one task to another,

· signaling the occurrences of events between tasks,

· allowing one task to control the execution of other tasks,

· synchronizing activities, and

· implementing custom synchronization protocols for resource sharing.

The first purpose of communication is for one task to transfer data to another task. Between the tasks, there can exist data dependency, in which one task is the data producer and another task is the data consumer. For example, consider a specialized processing task that is waiting for data to arrive from message queues or pipes or from shared memory. In this case, the data producer can be either an ISR or another task. The consumer is the processing task. The data source can be an I/O device or another task.

The second purpose of communication is for one task to signal the occurrences of events to another task. Either physical devices or other tasks can generate events. A task or an ISR that is responsible for an event, such as an I/O event, or a set of events can signal the occurrences of these events to other tasks. Data might or might not accompany event signals. Consider, for example, a timer chip ISR that notifies another task of the passing of a time tick.

The third purpose of communication is for one task to control the execution of other tasks. Tasks can have a master/slave relationship, known as process control. For example, in a control system, a master task that has the full knowledge of the entire running system controls individual subordinate tasks. Each subtask is responsible for a component, such as various sensors of the control system. The master task sends commands to the subordinate tasks to enable or disable sensors. In this scenario, data flow can be either unidirectional or bidirectional if feedback is returned from the subordinate tasks.

The fourth purpose of communication is to synchronize activities. The computation example given in 'Activity Synchronization' on section 15.2.2, shows that when multiple tasks are waiting at the execution barrier, each task waits for a signal from the last task that enters the barrier, so that each task can continue its own execution. In this example, it is insufficient to notify the tasks that the final computation has completed; additional information, such as the actual computation results, must also be conveyed.

The fifth purpose of communication is to implement additional synchronization protocols for resource sharing. The tasks of a multithreaded program can implement custom, more-complex resource synchronization protocols on top of the system-supplied synchronization primitives.

Chapter 6 discusses semaphores and mutexes that can be used as resource synchronization primitives. Two other methods, interrupt locking and preemption locking, can also be deployed in accomplishing resource synchronization.

Interrupt locking (disabling system interrupts) is the method used to synchronize exclusive access to shared resources between tasks and ISRs. Some processor architecture designs allow for a fine-grained, interrupt-level lock, i.e., an interrupt lock level is specified so that asynchronous events at or below the level of the disabled interrupt are blocked for the duration of the lock. Other processor architecture designs allow only coarse-grained locking, i.e., all system interrupts are disabled.

When interrupts are disabled at certain levels, even the kernel scheduler cannot run because the system becomes non-responsive to those external events that can trigger task re-scheduling. This process guarantees that the current task continues to execute until it voluntarily relinquishes control. As such, interrupt locking can also be used to synchronize access to shared resources between tasks.

Interrupt locking is simple to implement and involves only a few instructions. However, frequent use of interrupt locks can alter overall system timing, with side effects including missed external events (resulting in data overflow) and clock drift (resulting in missed deadlines). Interrupt locks, although the most powerful and the most effective synchronization method, can introduce indeterminism into the system when used indiscriminately. Therefore, the duration of interrupt locks should be short, and interrupt locks should be used only when necessary to guard a task-level critical region from interrupt activities.

A task that enabled interrupt locking must avoid blocking. The behavior of a task making a blocking call (such as acquiring a semaphore in blocking mode) while interrupts are disabled is dependent on the RTOS implementation. Some RTOSes block the calling task and then re-enable the system interrupts. The kernel disables interrupts again on behalf of the task after the task is ready to be unblocked. The system can hang forever in RTOSes that do not support this feature.

Preemption locking (disabling the kernel scheduler) is another method used in resource synchronization. Many RTOS kernels support priority-based, preemptive task scheduling. A task disables the kernel preemption when it enters its critical section and re-enables the preemption when finished. The executing task cannot be preempted while the preemption lock is in effect.

On the surface, preemption locking appears to be more acceptable than interrupt locking. Closer examination reveals that preemption locking introduces the possibility for priority inversion. Even though interrupts are enabled while preemption locking is in effect, actual servicing of the event is usually delayed to a dedicated task outside the context of the ISR. The ISR must notify that task that such an event has occurred.

This dedicated task usually executes at a high priority. This higher priority task, however, cannot run while another task is inside a critical region that a preemption lock is guarding. In this case, the result is not much different from using an interrupt lock. The priority inversion, however, is bounded. Chapter 16 discusses priority inversion in detail.

The problem with preemption locking is that higher priority tasks cannot execute, even when they are totally unrelated to the critical section that the preemption lock is guarding. This process can introduce indeterminism in a similar manner to that caused by the interrupt lock. This indeterminism is unacceptable to many systems requiring consistent real-time response.
