Qing Li - Real-Time Concepts for Embedded Systems

Figure 15.9: ISR-to-task synchronization using event registers.

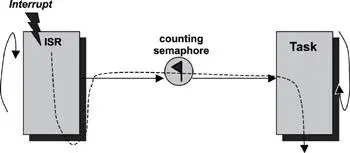

In Figures 15.6, 15.7, 15.8, and 15.9, multiple occurrences of the same event cannot accumulate. A counting semaphore, however, is used in Figure 15.10 to accumulate event occurrences and for task signaling. The value of the counting semaphore increments by one each time the ISR gives the semaphore. Similarly, its value is decremented by one each time the task gets the semaphore. The task runs as long as the counting semaphore is non-zero.

Figure 15.10: ISR-to-task synchronization using counting semaphores.

Two tasks can implement a simple rendezvous and can exchange data at the rendezvous point using two message queues, as shown in Figure 15.11. Each message queue can hold a maximum of one message. Both message queues are initially empty. When task #1 reaches the rendezvous, it puts data into message queue #2 and waits for a message to arrive on message queue #1. When task #2 reaches the rendezvous, it puts data into message queue #1 and waits for data to arrive on message queue #2. Task #1 has to wait on message queue #1 before task #2 arrives, and vice versa, thus achieving rendezvous synchronization with data passing.

Figure 15.11: Task-to-task rendezvous using two message queues.

One task can synchronize with another task in urgent mode using the signal facility. The signaled task processes the event notification asynchronously. In Figure 15.12, a task generates a signal to another task. The receiving task diverts from its normal execution path and executes its asynchronous signal routine.

Figure 15.12: Using signals for urgent data communication.

Multiple ways of accomplishing resource synchronization are available. These methods include accessing shared memory with mutexes, interrupt locks, or preemption locks and sharing multiple instances of resources using counting semaphores and mutexes.

In this design pattern, task #1 and task #2 access shared memory using a mutex for synchronization. Each task must first acquire the mutex before accessing the shared memory. The task blocks if the mutex is already locked, indicating that another task is accessing the shared memory. The task releases the mutex after it completes its operation on the shared memory. Figure 15.13 shows the order of execution with respect to each task.

Figure 15.13: Task-to-task resource synchronization-shared memory guarded by mutex.

In this design pattern, the ISR transfers data to the task using shared memory, as shown in Figure 15.14. The ISR puts data into the shared memory, and the task removes data from the shared memory and subsequently processes it. The interrupt lock is used for synchronizing access to the shared memory. The task must acquire and release the interrupt lock to avoid the interrupt disrupting its execution. The ISR does not need to be aware of the existence of the interrupt lock unless nested interrupts are supported (i.e., interrupts are enabled while an ISR executes) and multiple ISRs can access the data.

Figure 15.14: ISR-to-task resource synchronization- shared memory guarded by interrupt lock.

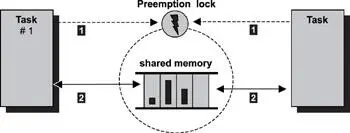

In this design pattern, two tasks transfer data to each other using shared memory, as shown in Figure 15.15. Each task is responsible for disabling preemption before accessing the shared memory. Unlike using a binary semaphore or a mutex lock, no waiting is invovled when using a preemption lock for synchronization.

Figure 15.15: Task-to-task resource synchronization-shared memory guarded by preemption lock.

Figure 15.16 depicts a typical scenario where N tasks share M instances of a single resource type, for example, M printers. The counting semaphore tracks the number of available resource instances at any given time. The counting semaphore is initialized with the value M . Each task must acquire the counting semaphore before accessing the shared resource. By acquiring the counting semaphore, the task effectively reserves an instance of the resource. Having the counting semaphore alone is insufficient. Typically, a control structure associated with the resource instances is used. The control structure maintains information such as which resource instances are in use and which are available for allocation. The control information is updated each time a resource instance is either allocated to or released by a task. A mutex is deployed to guarantee that each task has exclusive access to the control structure. Therefore, after a task successfully acquires the counting semaphore, the task must acquire the mutex before the task can either allocate or free an instance.

Figure 15.16: Sharing multiple instances of resources using counting semaphores and mutexes.

This section presents more complex design patterns for synchronization and communication. Multiple synchronization primitives can be found in a single design pattern.

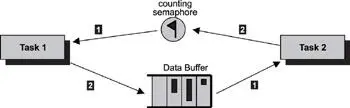

Task-to-task communication commonly involves data transfer. One task is a producer, and the other is a data consumer. Data processing takes time, and the consumer task might not be able to consume the data as fast as the producer can produce it. The producer can potentially overflow the communication channel if a higher priority task preempts the consumer task. Therefore, the consumer task might need to control the rate at which the producer task generates the data. This process is accomplished through a counting semaphore, as shown in Figure 15.17. In this case, the counting semaphore is a permission to produce data.

Figure 15.17: Using counting semaphores for flow control.

The data buffer in this design pattern is different from an RTOS-supplied message queue. Typically, a message queue has a built-in flow control mechanism. Assume that this message buffer is a custom data transfer mechanism that is not supplied by the RTOS.
