For example, consider two medium-priority tasks that share a critical section and that use preemption locking as the synchronization primitive. An unrelated print server daemon task runs at a much higher priority; however, the printer daemon cannot send a command to the printer to eject one page and feed the next while either of the medium tasks is inside the critical section. This issue results in garbled output or output mixed from multiple print jobs.

The benefit of preemption locking is that it allows the accumulation of asynchronous events instead of deleting them. The I/O device is maintained in a consistent state because its ISR can execute. Unlike interrupt locking, preemption locking can be expensive, depending on its implementation.

In the majority of RTOSes when a task makes a blocking call while preemption is disabled, another task is scheduled to run, and the scheduler disables preemption after the original task is ready to resume execution.

Many sources give the impression that a mutual exclusion algorithm similar to either the interrupt lock or the preemption lock should be used to guard a critical section. One implication is that the critical section should be kept short. This idea bears further examination.

The critical section of a task is a section of code that accesses a shared resource. A competing critical section is a section of code in another task that accesses the same resource. If these tasks do not have real-time deadlines and guarding the critical section is used only to ensure exclusive access to the shared resource without side effects, then the duration of the critical section is not important.

Imagine that a system has two tasks: one that performs some calculations and stores the results in a shared variable and another that reads that shared variable and displays its value. Using a chosen mutual exclusion algorithm to guard the critical section ensures that each task has exclusive access to the shared variable. These tasks do not have real-time requirements, and the only constraint placed on these two tasks is that the write operation precedes the read operation on the shared variable.

If another task without a competing critical section exists in the system but does have real-time deadlines to meet, the task must be allowed to interrupt either of the other two tasks, regardless of whether the task to be interrupted is in its critical section, in order to guarantee overall system correctness. Therefore, in this particular example, the duration of the critical sections of the first two tasks can be long, and higher priority task should be allowed to interrupt.

If the first two tasks have real-time deadlines and the time needed to complete their associated critical sections impacts whether the tasks meet their deadlines, this critical section should run to completion without interruption. The preemption lock becomes useful in this situation.

Therefore, it is important to evaluate the criticality of the critical section and the overall system impact before deciding on which mutual exclusion algorithm to use for guarding a critical section. The solution to the mutual exclusion problem should satisfy the following conditions:

· only one task can enter its critical section at any given time,

· fair access to the shared resource by multiple competing tasks is provided, and

· one task executing its critical section must not prevent another task executing a non-competing critical section.

This section presents a set of common inter-tasks synchronization and communication patterns designed from real-life scenarios. These design patterns are ready to be used in real-world embedded designs.

In these design patterns, the operation of event register manipulation is considered an atomic operation. The numberings shown in these design patterns indicate the execution orders.

Multiple ways of implementing synchronous activity synchronization are available, including:

· task-to-task synchronization using binary semaphores,

· ISR-to-task synchronization using binary semaphores,

· task-to-task synchronization using event registers,

· ISR-to-task synchronization using event registers,

· ISR-to-task synchronization using counting semaphores, and

· simple rendezvous with data passing.

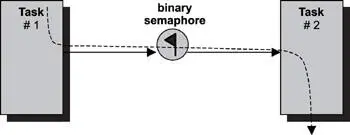

In this design pattern, two tasks synchronize their activities using a binary semaphore, as shown in Figure 15.6. The initial value of the binary semaphore is 0. Task #2 has to wait for task #1 to reach an execution point, at which time, task #1 signals to task #2 its arrival at the execution point by giving the semaphore and changing the value of the binary semaphore to 1. At this point, depending on their execution priorities, task #2 can run if it has higher priority. The value of the binary semaphore is reset to 0 after the synchronization. In this design pattern, task #2 has execution dependency on task #1.

Figure 15.6: Task-to-task synchronization using binary semaphores.

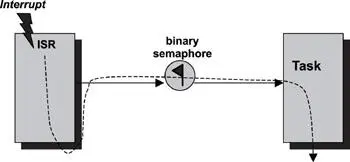

In this design pattern, a task and an ISR synchronize their activities using a binary semaphore, as shown in Figure 15.7. The initial value of the binary semaphore is 0. The task has to wait for the ISR to signal the occurrence of an asynchronous event. When the event occurs and the associated ISR runs, it signals to the task by giving the semaphore and changing the value of the binary semaphore to 1. The ISR runs to completion before the task gets the chance to resume execution. The value of the binary semaphore is reset to 0 after the task resumes execution.

Figure 15.7: ISR-to-task synchronization using binary semaphores.

In this design pattern, two tasks synchronize their activities using an event register, as shown in Figure 15.8. The tasks agree on a bit location in the event register for signaling. In this example, the bit location is the first bit. The initial value of the event bit is 0. Task #2 has to wait for task #1 to reach an execution point. Task #1 signals to task #2 its arrival at that point by setting the event bit to 1. At this point, depending on execution priority, task #2 can run if it has higher priority. The value of the event bit is reset to 0 after synchronization.

Figure 15.8: Task-to-task synchronization using event registers.

In this design pattern, a task and an ISR synchronize their activities using an event register, as shown in Figure 15.9. The task and the ISR agree on an event bit location for signaling. In this example, the bit location is the first bit. The initial value of the event bit is 0. The task has to wait for the ISR to signal the occurrence of an asynchronous event. When the event occurs and the associated ISR runs, it signals to the task by changing the event bit to 1. The ISR runs to completion before the task gets the chance to resume execution. The value of the event bit is reset to 0 after the task resume execution.
