Т.Ю.Кущ, М.С.ВоловникАнглийский язык для судовых электромехаников. ENGLISH FOR MARINE ELECTRICAL ENGINEERS. 1986

1. Automated machinery provided with automatic or remote control system, as well as, to the necessary extent, with monitoring systems, is in addition to be provided with means of local control.

In each case of failure in automatic or remote control systems, the possibility of local control is to be maintained.

2. Where machinery or installation is remotely controlled, it should be possible for the operator to check, with sufficient reliance, from his control station whether his command has been carried out by remote control system.

3. Each automatic or remote control system is to prevent the automatic restart of controlled machinery after its stopping by the safety or by emergency manual stop. Restart should be possible after manual reset.

4. Where machinery space of the ship is to be continuously fittended by one person, the extent of the necessary remote or automatic control will be specially in view of the location of the control station and manning routine of machinery, as well as their service requirements.

Translate these word-combinations:

a) the remaining wastes; b) the wastes remaining in the end; c) the isolated product; d) the articles published by. . . ; e) increase with increasing size of the atoms concerned; f) discover differing ratios; g) increased solids contents decreased; h) led to the modified and improved synthesis; i) a heated mixture gave approximately; j) increased inductive power affects the electron bonds; k) with decreased water content.

The fourth class period

26 4

Translate the following:

1. The results achieved are very important. 2. The methods improved by the workers brought good results. 3. The methods improved brought good results. 4. The data obtained are in a good conformity with the predicted results. 5. The technology developed by them is under consideration. 6. The well-equipped laboratory; the predicted results; the discovery mentioned received; the data obtained; increase with increasing-size of the atoms concerned; with decreased water content; increased solids contents decreased.

27 5

Listen to paragraphs 1—4, read sentence by sentence and translate them orallv in pauses.

28 4

Respond to the questions. Compare the results with the text.

1. What units does the power plant control system comprise of?

2. What are in your opinion the specific features in the design of the system?

3. What is meant by the “mother board”?

4. Did you see such a system? If yes, where did you see it?

6

29

Dwell on power plant control system, its design and operation with your fellow-student.

2

30

Fill in the blanks with suitable words.

1. The electronic ... consist of identical boxes ... with different electronic . . . and fronts. 2. The boxes are made of . . . steel and . . . with ventilation holes. 3. A printed . . . board, the “mother board”, constitutes the . . . wiring and is ... to the terminal board by a . . . ribbon cable.

4. Together, these two .. . form the rear of the .. . 5. Some programming is ... by ... on the mother board. 6. The ... board has two rows each with 33 terminals for . . . connections.

31 6

Using the notes below speak on the boxes of the electronic units.

1. unit, consist, box, furnish, different, board, front. 2. box, make, sheet, provide, hole. 3. print, circuit, flexible, ribbon. 4. two, board, to form, rear. 5. program, perform, jumper, mother. 6. terminal, have, row, each, external, connection. 7. electronic, insert, front, box. 8. mount, indicate, lamp, push button, board, front, plate, contain, correspond, lamp glasses, engrave,

Complete the following sentences.

1. The maximum number of different electronic boards is seven and every board has a. . . 2. This implies that anv fault can easily be. . .

3. The relay and transformer units are built up in 19 inch standard racks and function as... 4. The basic units, the additional monitoring units and the central unit shall be supplied from a 24 V battery, while. . .

5. The system can be adapted to different types of. . .

33 5

Work in pairs. With a piece of chalk (pencil) explain the design of the power plant control system to your fellow-student.

34 2

What device is described in this text?

It is made up of a convertor module and a contactor unit. The contactor unit includes a main contactor, an auxiliary contactor and an auxiliary supply transformer to power and operate contactors and cooling-fans.

They can be supplied both connected together in an enclosure, or in the form of separate units without enclosure. Enclosed systems are supplied with an instrument unit, the basic version of which is fitted with the following controls: on, off, trip reset, alarm reset.

Say some words about thyristor convertors.

35 4

Translate at sight.

Convertor module is used in all systems. It is also available as a non-enclosed function module for the current range 40—1400 A.

The convertor module is a complete unit which has been tested for correct operation. It is made up of thyristor unit and convertor control

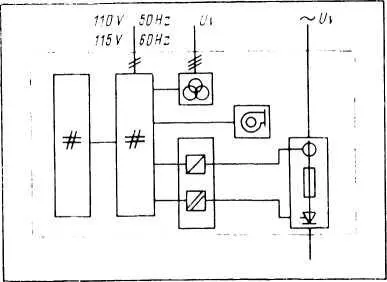

Fig 7. Converlor module

equipment. The convertor control equipment, in other words the electronic control circuits, consists of circuit boards mounted on a hinged panel. On convertor module 40—400 A the panel is supplied fixed in position; for the 650—1400 A module it is supplied separately.

The convertor control equipment is located on the inside of the panel. The permanent basic functions are grouped on one circuit board, known as the mother board. A number of optional functions in the form of small circuit boards can be connected to this mother board.

36 20

Home exercise. Write the exact translation of the second part of the text above. Be prepared to dwell on convertor module using Pig. 7.

Part II

Mounted on the outside of the. hinged panel is drive control cquip-

merit. The sub-functions are in the form of circuit boards connected to a mother board which provides all the internal connections between the sub-functions. Drive control equipment communicates with the convertor control equipment via a flat cable.

A convertor module can be fitted with all the options available for the convertor control equipment and the drive control equipment.

N. B. The open-core transformer for earth fault protection is supplied as a separate unit.

For supply voltages up to and including 500 V, the primary voltage of the auxiliary supply transformer is the same as the supply voltage of the convertor module. Where the supply voltage is higher, the transformer must be supplied separately with 500 V 60 Hz or 460 V 60 Hz.

For rated currents 230 A and above, an external supply at ПО V 50 Hz or 115 V 60 Hz is required to power and operate a cooling fan.

37 50

Home exercise. Read the text and then write a summary in English. Speak on some of the details of an electronic system operation that you know and that are provided bv the text. Use Fig. 8.

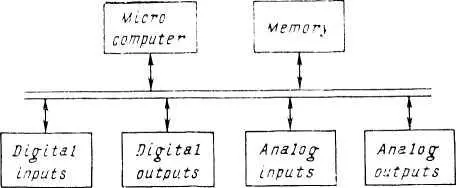

Fig. 8. Simplified block diagram

Programmable signal processing with the electronic system means that the executive functions of a process control system, e. g., is initiated and controlled by a program stored in a memory. On the basis of measured data collected from the process, the system performs the action laid down in the program. The function is therefore not tied to the electrical wiring of the system; it can be adapted to changed operating conditions simply by changing the program.
