Gennady Gromov - Thermoelectric Microgenerators. Optimization for energy harvesting

d)

Figure. 7.1 Temperature dependences of thermoelectric materials properties: Seebeck coefficient (a), electric conductivity (b), thermal conductivity (c) and Figure-of-Merit (d).

In calculated parameters of thermoelectric microgenerators average characteristics of pair of thermoelements of n-and p-types are applied. Therefore temperature dependences of properties of materials of both n-and p-types and these average dependences are given in Fig. 7.1. Average dependences characterize properties of p-n pair of such thermoelements. In mathematical formulas for parameters of thermoelectric generators such average properties on p-n to pair of thermoelements are just used.

On the presented temperature dependences it is necessary to make several important remarks.

Voltage U provided by generator linearly depends on thermoEMF E , defined by Seebeck coefficient α.

According to temperature dependence α =f (T) (Fig. 7.1a) with increasing of temperature the thermoEMF E , although not significantly, but is growing.

Maximum power of generator can be written as

where N×f – the product of the number N of pairs of thermoelements on the geometrical form-factor f is the specified value.

The factor α 2×σ in thermoelectricity is often called as a “power factor”. This factor is significant both for applications in the field of cooling, and in the generator direction. For generators – it shows dependence of the maximum power of P max of generator on parameters α and σ of thermoelectric material (7.5).

Since both parameters α and σ have temperature dependencies, with multidirectional (Fig. 7.1a and 7.1b, respectively), to understand the temperature dependence of maximum power P max you must be aware of the temperature dependence of α 2×σ that is presented in Fig.7.2.

Figure. 7.2 Dependence of α 2×σ on temperature.

Follows from this temperature dependence that useful power decreases with growth of temperature.

In the first approximation energy conversion efficiency (4.1) can be expressed as the following

Apparently from a formula (7.6) at the given temperature difference (for example, single Δ T =1℃) efficiency η approximately linearly depends on Figure-of-Merit Z . But this dependence becomes complicated existence of a factor – fractions with Figure-of-Merit parameter.

We will consider the modes of the maximum efficiency m≈ 1.4 and maximum power mode m= 1. Simplified formulas for the efficiency for such modes are the following, respectively.

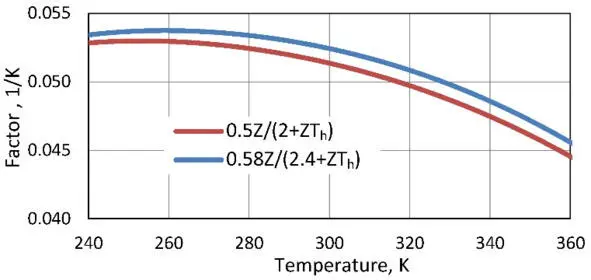

Fractional factors in both formulas (7.7) and (7.8) – Figure-of Merit factors, have temperature dependences, as shown in Fig. 7.3.

Figure. 7.3 Dependence of Figure-of-Merit on temperature.

The key parameter of material (its Figure-of Merit Z ) influencing efficiency has obviously expressed maximum near room temperatures (Fig. 7.1g) – in the range of 280—290K.
