Large virtual enterprises will quickly outgrow these SQL Server 2005 Express edition limitations. Therefore, you might assume that any virtual infrastructures using SQL Server 2005 Express Edition are smaller deployments with little projections, if any, for growth. VMware suggests the use of SQL Server 2005 Express Edition only for VI3 deployments with 5 or fewer hosts and 50 or fewer virtual machines.

Connecting VirtualCenter to a Microsoft SQL Server database, like the Oracle implementation, requires some specific configuration steps. The SQL Server computer must be configured in Mixed Mode authentication, as shown in Figure 5.5. This setting allows authentication to be performed by either Windows or SQL Server (see the sidebar “Windows Authentication vs. SQL Server Authentication”). Once you configure the SQL Server to allow the appropriate authentication, you must create a new database for VirtualCenter. Finally, you must create a SQL Server user account that has full access to the database you created for VirtualCenter. You can easily set the appropriate permissions for the account by making the account a member of the db_owner database role, as shown in Figure 5.6.

Figure 5.5Using SQL Server 2000 or SQL Server 2005 requires that the database server allow Windows and SQL Server Authentication.

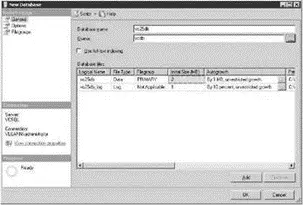

Take these steps prior to creating the ODBC connection to the SQL Server database. Using SQL Server 2005 requires not only that the account have dbo (db_owner) privileges, but that the account created actually own the database. In addition, the account used by VirtualCenter to access the SQL Server 2005 database must have membership in the db_owner database role in the msdb for the duration of the installation process. Figure 5.7 shows the creation of a new SQL Server 2005 database with the default owner changed to a custom SQL Server user account.

Figure 5.6The user account VirtualCenter uses to access the back-end SQL 2000 Server database requires database owner privileges to build the table structure and populate the tables with data.

Figure 5.7SQL Server 2005 databases used by VirtualCenter must be owned by the account Virtual-Center uses to connect to the database.

Not only will most database administrators cringe at the thought of over extending privileges to a SQL Server computer, it is not good practice to do so. As a best and strong security practice, it is best to minimize the permissions of each account that access the SQL Server computer. Therefore, in the case of the VirtualCenter 2.5 installation procedure, you will need to grant a SQL Server user account the db_owner membership on the MSDB database. However, once the installation is complete this role membership can be removed, and should be removed. Normal day-to-day operation of and access to the VirtualCenter database does not require this permission. It is a temporary requirement needed for the installation of VirtualCenter 2.5.

If you have an existing SQL Server 2005 database that needs to be used as the back-end for VirtualCenter, you can use the sp_changedbowner stored procedure command to change the database ownership accordingly. For example, EXEC sp_changedbowner @loginame='vcdbuser', @map=' true' would change the database owner to a user account named vcdbuser.

Microsoft SQL Server, both the 2000 and 2005 versions, supports two methods of authentication: Windows and SQL Server. While a default installation of SQL Server will allow only the Windows authentication method, this setting can be changed and in some cases, as with VirtualCenter, must be changed. Figure 5.8 shows a SQL Server 2005 server configured to allow Windows and SQL Server authentication, or what is often called Mixed Mode authentication.

Windows Authentication, as the name implies, involves authentication at the operating system level. The Windows operating system checks the username and password for a user attempting to use SQL Server. The SQL Server then only looks at the user's identity, including group memberships, to determine the level of access allowed to the SQL Server.

SQL Server authentication removes the Windows aspect of the authentication leaving the SQL Server to check the requesting user's username and password. SQL Server authentication is most commonly used when connecting non-Windows clients to a SQL Server database.

SQL Server 2000 and SQL Server 2005 can be configured to allow Windows-only authentication or to allow Windows and SQL Authentication (Mixed Mode), but there is no way to enforce a SQL Server authentication-only mode.

The configuration necessary to allow VirtualCenter to communicate with SQL Server is not an uncommon one and should result in little resistance from seasoned database administrators. In some cases, however, company policy may prevent the use of SQL Server authentication on specific SQL Servers or perhaps entirely. In this case, administrators might have to install and configure a new SQL Server computer or SQL instance to host the VirtualCenter database. If your company policy does not allow SQL Authentication to be used anywhere on the network, you will have to install SQL Server on the same computer as VirtualCenter. Figure 5.8 illustrates the scenarios in which VirtualCenter and SQL Server can communicate.

Figure 5.8Authentication from VirtualCenter to SQL Server must use SQL Authentication for a SQL Server user account; however, if VirtualCenter and SQL Server are on the same computer, a Windows user account can be used for authentication.

VirtualCenter will only support the Windows Authentication method to a SQL Server if VirtualCenter and SQL Server are installed on the same computer.

Once your database is setup you can create the ODBC connection to be used during the VirtualCenter Server installation wizard. If using SQL Server 2000, the ODBC connection can be created with the SQL Server driver. However, using SQL Server 2005 requires use of the SQL Native Client. Figure 5.9 shows both options available in the Create New Data Source wizard.

Figure 5.9ODBC connections to SQL Server 2005 require the SQL Native Client driver.

If you do not find the SQL Native Client option during the creation of the ODBC Connection string you can download it from Microsoft's Web site or install it off of a SQL Server 2005 installation CD-Rom.

On the server where VirtualCenter will be installed perform the following steps to create an ODBC connection to a SQL Server 2005 database:

1. Open the Data Sources (ODBC) applet from the Administrative Tools menu.

2. Select the System DSN tab.

3. Click the Add button.

4. Select the SQL Native Client from the list of available drivers and click the Finish button. If the SQL Native Client is not in the list it can be downloaded from Microsoft's Web site.
