Figure 1.15 SAR image of the famous “hook” of Cape Cod, Massachusetts, USA.

Source: www.jpl.nasa.gov/radar/sircxsar/capecod2.html.

In radar applications, the data are collected within a finite bandwidth of frequencies. According to the sampling theory, if the radar signal is g ( t ) and its spectrum is G ( f ), the frequency components beyond a specific frequency B is zero, that is

(1.31)

then the time‐domain signal g ( t ) should be sampled at least twice the bandwidth in frequency as

(1.32)

where f sstands for the sampling frequency.

When the radar imaging is concerned, the scattered electric field has the form as given in Eq. 1.30. The sampling theorem can be applied in the following manner:

Suppose that target to be imaged lies in the range direction within the range width or range extend of R maxsuch that

(1.33)

as depicted in Figure 1.16b. In the case of imaging radar, this figure represents the range profile of the target. The FT of g ( r ) represents its spectrum that is theoretically extends to infinity in the frequency axis (see Figure 1.16a). The main problem is to get the digitized (or sampled) versions of g ( r ) from digitized (or sampled) versions of G ( k ) or G ( f ) with adequate samples so that no aliasing occurs. Here, k stands for the wave number and related to the operating frequency as

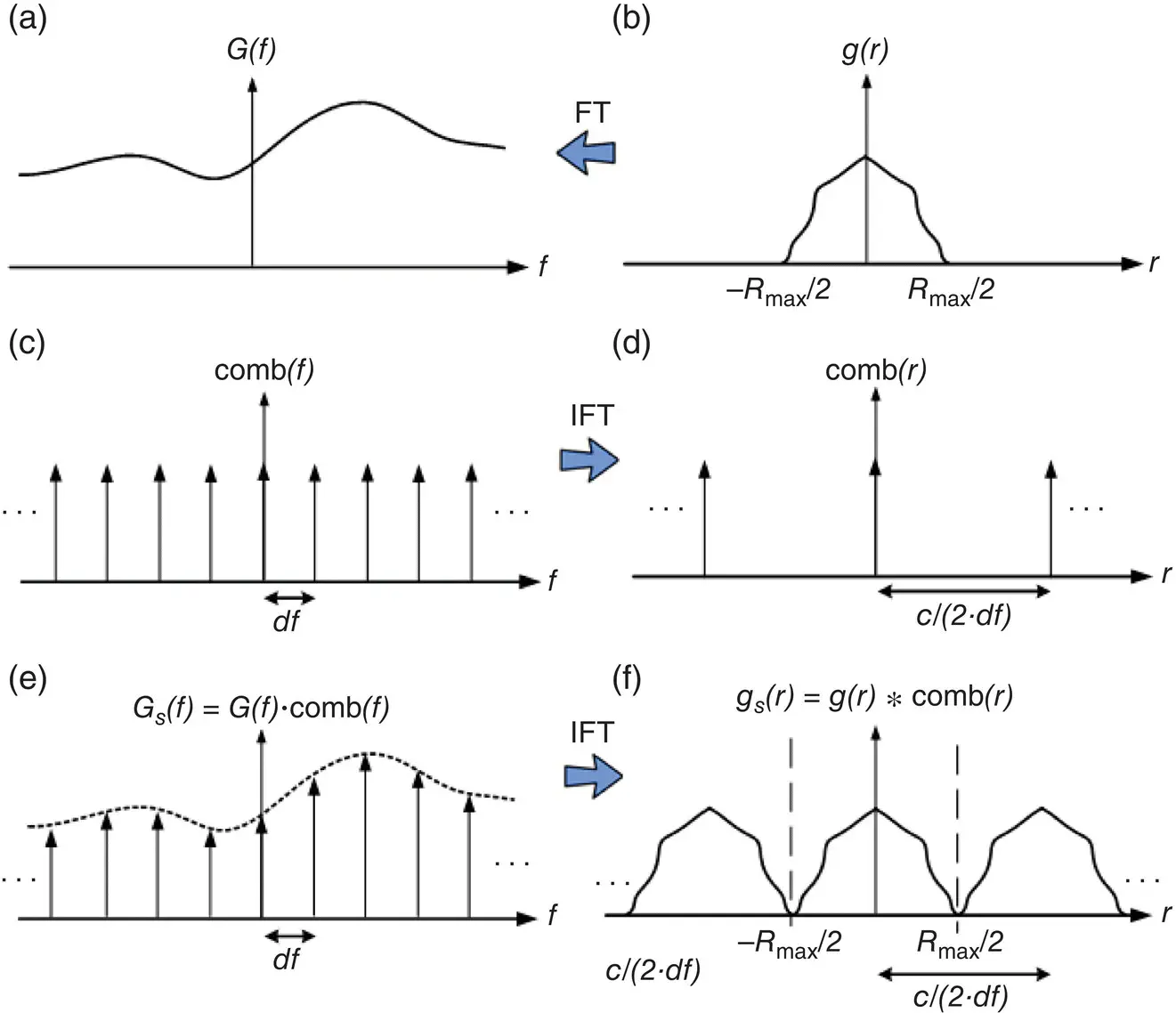

Figure 1.16 The Nyquist sampling procedure for getting unaliased range image. (a) Frequency‐domain radar signal for a range windowed data, (b) range domain signal, (c) sampling comb signal in frequency domain, (d) its range domain equivalent, (e) critically sampled version of the frequency‐domain signal, and (f) its range domain equivalent.

(1.34)

where c is the speed of light. Utilizing the relationship between the wave‐number; k and the distance; R in Eq. 1.30, the sampling in the wave number domain should satisfy the following inequality:

(1.35)

This inequality is forced by the famous Nyquist sampling condition. The minimum sampling frequency, then, should be equal to

(1.36)

Then, the sampled version of frequency‐domain signal G ( f ) is obtained by the multiplication of the G ( f ) with the following impulse comb function:

(1.37)

The plot of this comb function is shown in Figure 1.16c. By taking the IFT of this comb function, we can get another comb function in the range domain as

(1.38)

as depicted in Figure 1.16d. The sampled version of frequency‐domain signal, G s( f ) can be get by multiplying the original frequency‐domain signal, G ( f ) with the impulse comb function in Figure 1.16c as

(1.39)

that is shown in Figure 1.16e. The range domain equivalent of the frequency‐domain sampled signal can be found via inverse Fourier transforming as

(1.40)

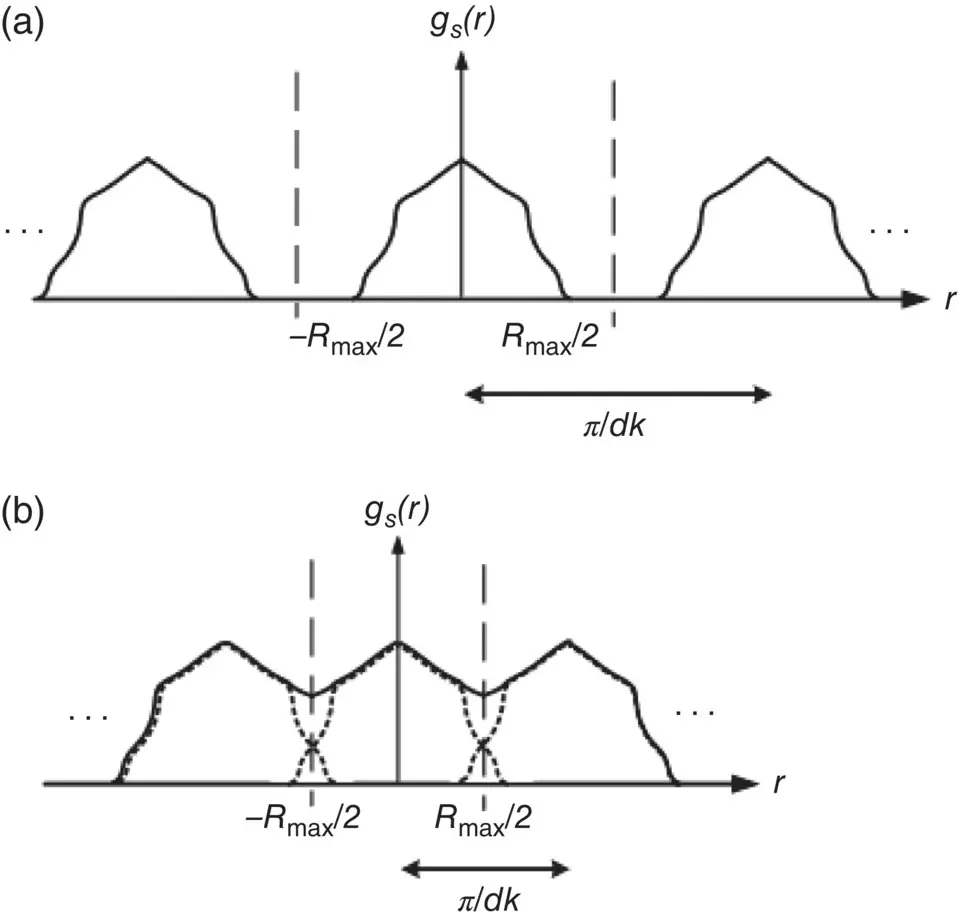

Figure 1.17 The effect of sampling rate. (a) No aliasing due to oversampling and (b) aliased or distorted range domain waveform due to undersampling.

where “*” denotes the convolution operation. Therefore, the resultant range domain signal is periodic with ( c /2 df ) intervals. If df is chosen to be equal to ( df ) min= c /2 R max, the period of g s( r ) becomes R maxas illustrated in Figure 1.16f. If G ( f ) is sampled finer than ( df ) min, that is, over‐sampled, no aliasing occurs and the resultant g s( r ) signal will be similar to the one in Figure 1.17a. Therefore, when the DFT is used, the original range domain signal falls within one period of g s( r ) and can be recovered without any distortion. When a sampling rate of df ≥ ( df ) minis used, g s( r ) signal is aliased as demonstrated in Figure 1.17b and the original range domain signal g ( r ) is distorted within one period of ( c /2 df ). Therefore, the recovery of g ( r ) is not possible due to undersampling of G ( f ). The effect of aliasing in ISAR imaging will be covered in Chapter 5, Section 5.2.

Below are the Matlab source codes that were used to generate all of the Matlab‐produced figures in this chapter. The codes are also provided inside the CD of this book.

%‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ % This code can be used to generate Figure Figure 1.1 %‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ % This file requires the following files to be present in the same % directory: % %prince.wav clear all close all % Read the sound signal "prince.wav" [y,Fs] = audioread('prince.wav'); sound(y,Fs); %play the sound N=length(y); % TIME DOMAIN SIGNAL t=0:.8/(N-1):.8; %form time vector plot(t,y,'k'); %downsample for plotting grid minor set(gca,'FontName', 'Arial', 'FontSize',12, 'FontWeight','Bold'); axis tight; xlabel('time, s'); ylabel('amplitude'); title('\ittime domain signal');
