Internet of Things in Business Transformation

1. Hu, F., Xie, D., Shen, S., On the Application of the Internet of Things in the Field of Medical and Health Care. 2013 IEEE International Conference on Green Computing and Communications and IEEE , 2013.

2. Jimenez, F. and Torres, R., Building an IoT-aware healthcare monitoring system. 2015 34th International Conference of the Chilean Computer Science Society (SCCC) , 2015.

3. Chiuchisan, I., Costin, H.-N., Geman, O., Adopting the Internet of Things Technologies in Health Care Systems. 2014 International Conference and Exposition on Electrical and Power Engineering (EPE 2014) , Iasi, Romania, 16–18 October, 2014.

4. Luo, J., Tang, K., Chen, Y., Luo, J., Remote Monitoring Information System and Its Applications Based on the Internet of Things. 2009 International Conference on Future BioMedical Information Engineering , 2009.

5. Istepanian, R.S.H., Sungoor, A., Faisal, A., Philip, N., Internet of M-Health Things, m-IOT . Imperial College London ... Taccini, 2005.

6. Amendola, S., Lodato, R., Manzari, S., Occhiuzzi, C., Marrocco, G., RFID Technology for IoT-Based Personal Healthcare in Smart Spaces. IEEE Internet Things J., 1, 2, 144–152, 2014.

7. Stankovic, Q., Cao, Doan, T., Fang, L., He, Z., Kiran, R., Lin, S., Son, S., Stoleru, R., Wood, A., Wireless Sensor Networks for In-Home Healthcare: Potential and Challenges. 2015 34th International Conference of the Chilean Computer Science Society (SCCC) .

1 *Corresponding author: ramapriya288@gmail.com

2 †Corresponding author: coolparag2@gmail.com

3 ‡Corresponding author: akarshkolekarr@gmail.com

4 §Corresponding author: sbikr@gmail.com

5 ¶ Corresponding author: srinivas2@gmail.com

6 ** Corresponding author: rajaseka2@gmail.com

Bilal Mehmood and Farhan Aadil*

Computer Science Department, COMSATS University Islamabad, Attock Campus, Attock, Pakistan

Abstract

Wireless body area network (WBAN) is a network of tiny health monitoring sensors, implanted or placed on the human body to collect and communicate human physiological data. WBAN used to have a connection with Medical-Server to monitor patient’s health. It is capable to protect critical patient’s lives, due to its ability to continuous remote monitoring. Inter-WBAN system provides a dynamic environment for patients to move around freely. While moving, some of the WBANs (patients) may or may not be in the range of Remoter Base Station (RBS). Here we need an efficient approach for inter-WBAN communication. In the proposed clustered-based routing technique network overhead is reduced and cluster lifetime is increased. The cluster head act as a gateway in between cluster members and external network. Moreover, for the selection of optimized cluster heads, we used evolutionary algorithms to select the most optimized solution, within the set of solutions. In the clustering approach, network efficiency is dependent on the cluster’s lifetime. The proposed technique forms efficient clusters with an increased lifetime along with remarkable network and energy efficiency.

Keywords: Wireless body area network (WBAN), energy-efficient clustering, inter-WBAN routing

WBANs are a network of small size, lightweight, low power, wearable/implantable sensors. These sensors monitor human’s physiological activities like Patient’s Heartbeat, blood pressure, Electrocardiogram (ECG), EMG, etc. WBANs allow connectivity in between heterogeneous body sensor to a portable hub devise that provide a connection to the external internet. There are a variety of applications of the WBANs. Military can use it to monitor the physical location, physical condition, and vital signs of a field person. In the medical perspective, we can keep track patient’s physiological condition, to provide medical facilities [1]. On a single body, multiple sensors can be placed and these nodes used to form a single WBAN. Each WBAN has a centralized entity called Personal Server (PS). It gathers data from other sensors and acts as a gateway. PS has a connection to RBS directly or with multiple hops. Communication of two types, intra-WBAN and inter-WBAN occurs in the WBANs. Intra-WBAN is a communication within the sensors of a single WBAN. On the other hand, Inter-WBAN is communication among multiple WBANs. Information collected by the sensors is transmitted to the remote Medical-Server, which is situated in the hospital. Inter-WBAN communication provides dynamic access when patients are doing their normal routine work (during movement in home, office, market or playground). In this case, sensor residing on the human body may or may not be in the range of RBS. So cooperation of multiple WBANs is required for hop-to-hop communion, to reach the RBS. RBS is responsible for further transmission to Medical-Server via the internet. WBANs are capable of protecting human lives by detecting patient’s critical conditions at its early stages. Many human lives are dependent on the performance of the WBAN. Routing strategy is the key to network efficiency. There are different routing mechanisms of inter-BAN and intra-BAN communication. Each WBAN needs to be connected to the external network with the help of a gateway.

This gateway can be a Cellular device, a computer system, or a router which is capable of establishing a connection between inter-WBAN nodes and external internet. The problem arrives when WBAN do not have access to gateway device due to some reason. It is a common experience in a crowded area, like in stadium of international games or any kind of international event, where a huge amount of people access the same network and share their photos and videos. Due to congestion, degradation in the performance of network occurs. Although nowadays cellular networks provide a highly efficient network, it is not enough in some cases, that’s why a separate public safety radio system is used by police, firefighters and emergency medical technicians. It operates in separate portions of the 800 MHz band, which consists of a spectrum at 806–824 MHz paired with spectrum at 851–869 MHz. Another scenario is the battlefield where there is no Access Point available in the vicinity of every soldier as shown in Figure 3.1.

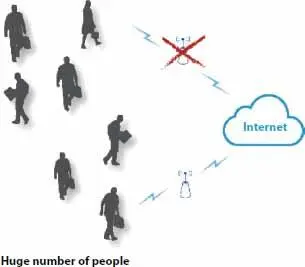

Figure 3.1 Base station is not in access of some WBANs.

Inter-WBAN communication can be useful in both of the cases. As WBAN consists of low power energy nodes, we required an efficient energy consumption routing technique. Clustering is one of the best solutions for efficient routing, where a cluster head is responsible for the transmission of data of multiple WBANs. Network efficiency is dependent on the cluster’s lifetime. In this paper, we proposed an optimization technique of clusters formation using Evolutionary Algorithms. Each cluster head (CH) is a gateway in between cluster members (PSs) of multiple WBANs and the external network. CHs are selected on the bases of fitness.

As the patient’s lives are dependent on the data traveling from both inter and intra-BANs network, it needs to be secured. Researchers proposed different techniques, some techniques form clusters among the sensors nodes on a single body, the reason to make these clusters is to efficiently utilize the energy of the nodes in tier 1 transmission. On the other hand, cluster formation in inter-BAN nodes of different WBANs is for efficient hop-to-hop routing for tier 2 transmission. A multi- hop routing protocol is proposed by Sriyanijnana et al. , it performs well in the perspective of energy consumption, Packet Delivery Ratio (PDR) and network lifetime [2]. A number of fixed nodes are deployed in the network. A cost function is calculated for or the purpose of selection of Forwarding-node. The defined cost function is based on distance from the coordinator nodes, transmission range, residual energy, and on velocity vector of receiver. With clusters a dual sink approach used by DSCB [3], this clustering mechanism use two sinks. They also used the cost function for the purpose of selection of forwarding nodes. Forwarder node is selected by measuring distance of nodes from sink, its residual energy and transmission power. This clustering mechanism provides better performance in the prospective of network scalability, energy and an end to end delay.
