To ensure that this problem does not happen, use a mutex semaphore instead. Because a mutex supports the concept of ownership, it ensures that only the task that successfully acquired (locked) the mutex can release (unlock) it.

Sometimes a developer might want a task to access a shared resource recursively. This situation might exist if tAccessTask calls Routine A that calls Routine B, and all three need access to the same shared resource, as shown in Figure 6.9.

Figure 6.9: Recursive shared- resource-access synchronization.

If a semaphore were used in this scenario, the task would end up blocking, causing a deadlock. When a routine is called from a task, the routine effectively becomes a part of the task. When Routine A runs, therefore, it is running as a part of tAccessTask. Routine A trying to acquire the semaphore is effectively the same as tAccessTask trying to acquire the same semaphore. In this case, tAccessTask would end up blocking while waiting for the unavailable semaphore that it already has.

One solution to this situation is to use a recursive mutex. After tAccessTask locks the mutex, the task owns it. Additional attempts from the task itself or from routines that it calls to lock the mutex succeed. As a result, when Routines A and B attempt to lock the mutex, they succeed without blocking. The pseudo code for tAccessTask, Routine A, and Routine B are similar to Listing 6.5.

Listing 6.5: Pseudo code for recursively accessing a shared resource.

tAccessTask () {

:

Acquire mutex

Access shared resource

Call Routine A

Release mutex

:

}

Routine A () {

:

Acquire mutex

Access shared resource

Call Routine B

Release mutex

:

}

Routine B () {

:

Acquire mutex

Access shared resource

Release mutex

:

}

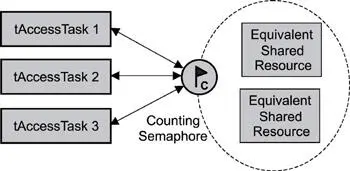

For cases in which multiple equivalent shared resources are used, a counting semaphore comes in handy, as shown in Figure 6.10.

Figure 6.10: Single shared-resource-access synchronization.

Note that this scenario does not work if the shared resources are not equivalent. The counting semaphore's count is initially set to the number of equivalent shared resources: in this example, 2. As a result, the first two tasks requesting a semaphore token are successful. However, the third task ends up blocking until one of the previous two tasks releases a semaphore token, as shown in Listing 6.6. Note that similar code is used for tAccessTask 1, 2, and 3.

Listing 6.6: Pseudo code for multiple tasks accessing equivalent shared resources.

tAccessTask () {

:

Acquire a counting semaphore token

Read or Write to shared resource

Release a counting semaphore token

:

}

As with the binary semaphores, this design can cause problems if a task releases a semaphore that it did not originally acquire. If the code is relatively simple, this issue might not be a problem. If the code is more elaborate, however, with many tasks accessing shared devices using multiple semaphores, mutexes can provide built-in protection in the application design.

As shown in Figure 6.9, a separate mutex can be assigned for each shared resource. When trying to lock a mutex, each task tries to acquire the first mutex in a non-blocking way. If unsuccessful, each task then tries to acquire the second mutex in a blocking way.

The code is similar to Listing 6.7. Note that similar code is used for tAccessTask 1, 2, and 3.

Listing 6.7: Pseudo code for multiple tasks accessing equivalent shared resources using mutexes.

tAccessTask () {

:

Acquire first mutex in non-blocking way

If not successful then acquire 2nd mutex in a blocking way

Read or Write to shared resource

Release the acquired mutex

:

}

Using this scenario, task 1 and 2 each is successful in locking a mutex and therefore having access to a shared resource. When task 3 runs, it tries to lock the first mutex in a non-blocking way (in case task 1 is done with the mutex). If this first mutex is unlocked, task 3 locks it and is granted access to the first shared resource. If the first mutex is still locked, however, task 3 tries to acquire the second mutex, except that this time, it would do so in a blocking way. If the second mutex is also locked, task 3 blocks and waits for the second mutex until it is unlocked.

Some points to remember include the following:

· Using semaphores allows multiple tasks, or ISRs to tasks, to synchronize execution to synchronize execution or coordinate mutually exclusive access to a shared resource.

· Semaphores have an associated semaphore control block (SCB), a unique ID, a user-assigned value (binary or a count), and a task-waiting list.

· Three common types of semaphores are binary, counting, and mutual exclusion (mutex), each of which can be acquired or released.

· Binary semaphores are either available (1) or unavailable (0). Counting semaphores are also either available (count =1) or unavailable (0). Mutexes, however, are either unlocked (0) or locked (lock count =1).

· Acquiring a binary or counting semaphore results in decrementing its value or count, except when the semaphore’s value is already 0. In this case, the requesting task blocks if it chooses to wait for the semaphore.

· Releasing a binary or counting semaphore results in incrementing the value or count, unless it is a binary semaphore with a value of 1 or a bounded semaphore at its maximum count. In this case, the release of additional semaphores is typically ignored.

· Recursive mutexes can be locked and unlocked multiple times by the task that owns them. Acquiring an unlocked recursive mutex increments its lock count, while releasing it decrements the lock count.

· Typical semaphore operations that kernels provide for application development include creating and deleting semaphores, acquiring and releasing semaphores, flushing semaphore’s task-waiting list, and providing dynamic access to semaphore information.

Chapter 6 discusses activity synchronization of two or more threads of execution. Such synchronization helps tasks cooperate in order to produce an efficient real-time system. In many cases, however, task activity synchronization alone does not yield a sufficiently responsive application. Tasks must also be able to exchange messages. To facilitate inter-task data communication, kernels provide a message queue object and message queue management services.

This chapter discusses the following:

· defining message queues,

· message queue states,

· message queue content,

· typical message queue operations, and

· typical message queue use.
