Wei-Meng Lee - C# 2008 Programmer's Reference

The content of the user.config file looks like this:

ftp://127.0.0.1

anonymous1

password

Each user (of your computer) will maintain his own copy of the user.configfile.

Now to code the application. Switching to the code-behind of Form1, import the following namespaces:

using System.Net;

using System.IO;

Define the WebRequestMethodenumeration:

namespace PhotoViewer {

enum WebRequestMethod {

MakeDirectory,

DownloadFile,

ListDirectoryDetails,

RemoveDirectory,

DeleteFile

}

Declare the following constants and member variables:

public partial class Form1 : Form {

//---constants for the icon images---

const int ico_OPEN = 0;

const int ico_CLOSE = 1;

const int ico_PHOTO = 2;

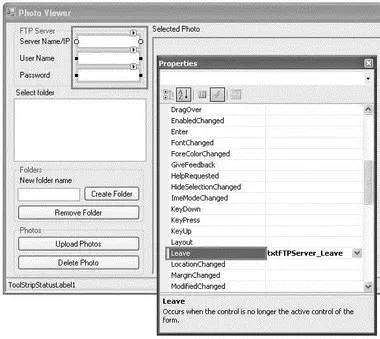

In Form1, select the three TextBoxcontrols (you can Ctrl+click each of them) that ask for the FTP server name, user name, and password (see Figure 16-9). In the Properties window, double-click the Leaveproperty to generate an event handler stub for the Leaveevent.

Figure 16-9

Visual Studio 2008 then generates the txtFtpServer_Leaveevent handler:

private void txtFTPServer_Leave(object sender, EventArgs e) {

}

The event handler is invoked whenever the focus leaves one of the three TextBoxcontrols you have selected. This is where you can save the information entered by the user into the application settings you have created in the previous section.

Code the event handler as follows:

private void txtFTPServer_Leave(object sender, EventArgs e) {

//---save the values in the textbox controls

// into the application settings---

Properties.Settings.Default.FTP_SERVER = txtFTPServer.Text;

Properties.Settings.Default.UserName = txtUserName.Text;

Properties.Settings.Default.Password = txtPassword.Text;

Properties.Settings.Default.Save();

}

You access the various application settings using the Properties.Settings.Defaultclass (as generated in the Settings.Designer.csfile). Once the application settings are assigned a value, you need to persist them using the Save()method.

When the form is loaded, you first load the values of the application settings into the TextBoxcontrols, and then display a node representing the root directory of the FTP server in the TreeViewcontrol:

private void Form1_Load(object sender, EventArgs e) {

try {

//---load the application settings values

// into the textbox controls---

txtFTPServer.Text = Properties.Settings.Default.FTP_SERVER;

txtUserName.Text = Properties.Settings.Default.UserName;

txtPassword.Text = Properties.Settings.Default.Password;

//---create the root node for the TreeView---

TreeNode node = new TreeNode();

node.ImageIndex = ico_CLOSE;

node.SelectedImageIndex = ico_OPEN;

node.Text = @"/";

//---add the root node to the control---

TreeView1.Nodes.Add(node);

//---add the dummy child node to the root node---

node.Nodes.Add("");

//---select the root node---

TreeView1.SelectedNode = node;

} catch (Exception ex) {

MessageBox.Show(ex.ToString());

}

}

You will always add a dummy node in the TreeViewcontrol after a node is created to ensure that the current node can be expanded to reveal subdirectories (even if there are none). This is shown in Figure 16-10.

Figure 16-10

When a node is expanded (by clicking on the +symbol), the TreeView1_BeforeExpandevent is fired. You have to write code that checks to see if the current node is a leaf node (meaning that it is not a directory but a file). If it is a leaf node, exit the method. Otherwise, you need to display its subdirectories (if any).

You should also change the current node icon to "open" if the node is selected and "closed" if the node is not selected. Here's the code for expanding folders and displaying the proper icon at each node:

private void TreeView1_BeforeExpand(

object sender, TreeViewCancelEventArgs e) {

//---if leaf node (photo) then exit---

if (e.Node.ImageIndex == ico_PHOTO) return;

//---remove the dummy node and display the subdirectories and files---

try {

//---clears all the nodes and...---

e.Node.Nodes.Clear();

//---create the nodes again---

BuildDirectory(e.Node);

} catch (Exception ex) {

ToolStripStatusLabel1.Text = ex.ToString();

}

//---change the icon for this node to open---

if (e.Node.GetNodeCount(false) > 0) {

e.Node.ImageIndex = ico_CLOSE;

e.Node.SelectedImageIndex = ico_OPEN;

}

}

The BuildDirectory()function displays all the files and subdirectories within the current directory in the TreeViewcontrol. Before you look at the definition of the BuildDirectory()function, you define the GetDirectoryListing()function, whose main job is to request from the FTP server the directory listing of a specified path:

//---Get the file/dir listings and return them as a string array---
