Networking options --->

[*] Network firewalls

[*] TCP/IP networking

[*] IP: firewalling

[*] IP: firewall packet logging

In kernels 2.4.0 and later you should select this option instead:

Networking options --->

[*] Network packet filtering (replaces ipchains)

IP: Netfilter Configuration --->

.

Userspace queueing via NETLINK (EXPERIMENTAL)

IP tables support (required for filtering/masq/NAT)

limit match support

MAC address match support

netfilter MARK match support

Multiple port match support

TOS match support

Connection state match support

Unclean match support (EXPERIMENTAL)

Owner match support (EXPERIMENTAL)

Packet filtering

REJECT target support

MIRROR target support (EXPERIMENTAL)

.

Packet mangling

TOS target support

MARK target support

LOG target support

ipchains (2.2-style) support

ipfwadm (2.0-style) support

The ipfwadm (IP Firewall Administration) utility is the tool used to build the firewall rules for all kernels prior to 2.2.0. Its command syntax can be very confusing because it can do such a complicated range of things, but we'll provide some common examples that will illustrate the most important variations of these.

The ipfwadm utility is included in most modern Linux distributions, but perhaps not by default. There may be a specific software package for it that you have to install. If your distribution does not include it, you can obtain the source package from ftp.xos.nl in the /pub/linux/ipfwadm/ directory, and compile it yourself.

Just as for the ipfwadm utility, the ipchains utility can be somewhat baffling to use at first. It provides all of the flexibility of ipfwadm with a simplified command syntax, and additionally provides a "chaining" mechanism that allows you to manage multiple rulesets and link them together. We'll cover rule chaining in a separate section near the end of the chapter, because for most situations it is an advanced concept.

The ipchains command appears in most Linux distributions based on the 2.2 kernels. If you want to compile it yourself, you can find the source package from its developer's site at http://www.rustcorp.com/linux/ipchains/. Included in the source package is a wrapper script called ipfwadm-wrapper that mimics the ipfwadm command, but actually invokes the ipchains command. Migration of an existing firewall configuration is much more painless with this addition.

The syntax of the iptables utility is quite similar to that of the ipchains syntax. The changes are improvements and a result of the tool being redesigned to be extensible through shared libraries. Just as for ipchains, we'll present iptables equivalents of the examples so you can compare and contrast its syntax with the others.

The iptables utility is included in the netfilter source package available at http://www.samba.org/netfilter/. It will also be included in any Linux distribution based on the 2.4 series kernels.

We'll talk a bit about netfilter 's huge step forward in a section of its own later in this chapter.

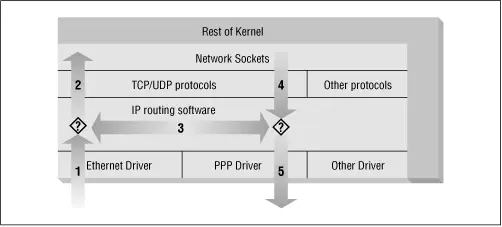

Consider how a Unix machine, or in fact any machine capable of IP routing, processes IP datagrams. The basic steps, shown in Figure 9.2 are:

Figure 9.2: The stages of IP datagram processing

· The IP datagram is received. (1)

· The incoming IP datagram is examined to determine if it is destined for a process on this machine.

· If the datagram is for this machine, it is processed locally. (2)

· If it is not destined for this machine, a search is made of the routing table for an appropriate route and the datagram is forwarded to the appropriate interface or dropped if no route can be found. (3)

· Datagrams from local processes are sent to the routing software for forwarding to the appropriate interface. (4)

· The outgoing IP datagram is examined to determine if there is a valid route for it to take, if not, it is dropped.

· The IP datagram is transmitted. (5)

In our diagram, the flow 1→3→5 represents our machine routing data between a host on our Ethernet network to a host reachable via our PPP link. The flows 1→2 and 4→5 represent the data input and output flows of a network program running on our local host. The flow 4→3→2 would represent data flow via a loopback connection. Naturally data flows both into and out of network devices. The question marks on the diagram represent the points where the IP layer makes routing decisions.

The Linux kernel IP firewall is capable of applying filtering at various stages in this process. That is, you can filter the IP datagrams that come in to your machine, filter those datagrams being forwarded across your machine, and filter those datagrams that are ready to be transmitted.

In ipfwadm and ipchains, an Input rule applies to flow 1 on the diagram, a Forwarding rule to flow 3, and an Output rule to flow 5. We'll see when we discuss netfilter later that the points of interception have changed so that an Input rule is applied at flow 2, and an Output rule is applied at flow 4. This has important implications for how you structure your rulesets, but the general principle holds true for all versions of Linux firewalling.

This may seem unnecessarily complicated at first, but it provides flexibility that allows some very sophisticated and powerful configurations to be built.

The first generation IP firewall support for Linux appeared in the 1.1 series kernel. It was a port of the BSD ipfw firewall support to Linux by Alan Cox. The firewall support that appeared in the 2.0 series kernels and is the second generation was enhanced by Jos Vos, Pauline Middelink, and others.

The ipfwadm command was the configuration tool for the second generation Linux IP firewall. Perhaps the simplest way to describe the use of the ipfwadm command is by example. To begin, let's code the example we presented earlier.

Let's suppose that we have a network in our organization and that we are using a Linux-based firewall machine to connect our network to the Internet. Additionally, let's suppose that we wish the users of that network to be able to access web servers on the Internet, but to allow no other traffic to be passed.

We will put in place a forwarding rule to allow datagrams with a source address on our network and a destination socket of port 80 to be forwarded out, and for the corresponding reply datagrams to be forwarded back via the firewall.

Assume our network has a 24-bit network mask (Class C) and an address of 172.16.1.0. The rules we might use are: The second rule sets our default forwarding policy. We tell the kernel to deny or disallow forwarding of IP datagrams. It is very important to set the default policy, because this describes what will happen to any datagrams that are not specifically handled by any other rule. In most firewall configurations, you will want to set your default policy to "deny," as shown, to be sure that only the traffic you specifically allow past your firewall is forwarded.
