■ EnterpriseThrough Group Policy that applies to a site, a domain, or an organizational unit, you can enable disk quotas for groups of users and computers.

Having to keep track of disk quotas does cause some overhead on computers. This overhead is a function of the number of disk quotas being enforced, the total size of the volumes and their data, and the number of users to which the disk quotas apply.

Although on the surface disk quotas are tracked per user, behind the scenes Windows Server 2012 R2 manages disk quotas according to security identifiers (SIDs). Because SIDs are tracked by disk quotas, you can safely modify user names without affecting the disk quota configuration. Tracking by SIDs does cause some additional overhead when viewing disk quota statistics for users because Windows Server 2012 R2 must correlate SIDs to user account names so that the account names can be displayed in dialog boxes. This means contacting the local user manager and the Active Directory domain controller as necessary.

After Windows Server 2012 R2 looks up names, it caches them to a local file so that they can be available immediately the next time they’re needed. The query cache is infrequently updated-if you notice a discrepancy between what’s displayed and what’s configured, you need to refresh the information. Usually, this means choosing Refresh from the View menu or pressing F5 in the current window.

The best way to configure NTFS disk quotas is through Group Policy. When you configure disk quotas through local policy or through unit, domain, and site policy, you define general policies that are set automatically when you enable quota management on individual volumes. Thus, rather than having to configure each volume separately, you can use the same set of rules and apply them in turn to each volume you want to manage.

Policies that control NTFS disk quotas are applied at the system level. You access these policies through Computer Configuration\Administrative Templates\System\Disk Quotas. Table 4–5 summarizes the available policies.

TABLE 4–5Policies for Setting NTFS disk quotas

Whenever you work with quota limits, you should use a standard set of policies on all systems; however, you typically, won’t want to enable all the policies. Instead, you’ll selectively enable policies and then use the standard NTFS features to control quotas on various volumes. If you want to enable quota limits, follow these steps:

1.Access Group Policy for the system (for example, a file server) with which you want to work. Access the Disk Quotas node by expanding Computer Configuration, Administrative Templates, System, and then selecting Disk Quotas.

2.Double-tap or double-click Enable Disk Quotas. Select Enabled, and then tap or click OK.

3.Double-tap or double-click Enforce Disk Quota Limit. If you want to enforce disk quotas on all NTFS volumes residing on this computer, tap or click Enabled. Otherwise, tap or click Disabled, and then set specific limits on a per-volume basis. Tap or click OK.

4.Double-tap or double-click Specify Default Quota Limit And Warning Level. In the dialog box shown in Figure 4–6, select Enabled.

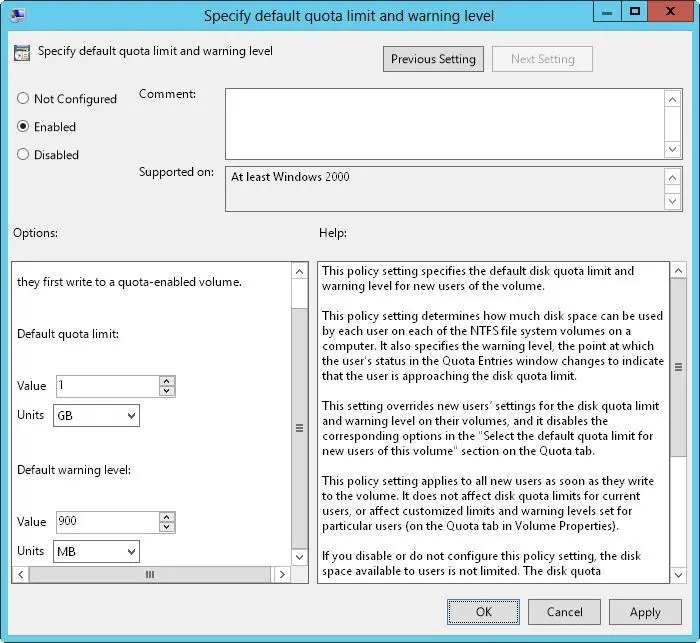

FIGURE 4–6Enforce disk quotas in the Specify Default Quota Limit And Warning Level dialog box.

5.Under Default Quota Limit, set a default limit that’s applied to users when they first write to the quota-enabled volume. The limit doesn’t apply to current users or affect current limits in place. On a corporate share, such as a share used by members of a project team, a good limit is between 5 and 10 GB. Of course, this depends on the size of the data files that the users routinely work with, the number of users, and the size of the disk volume. Graphic designers and data engineers might need much more disk space.

6.To set a warning limit, scroll down in the Options window. A good warning limit is about 90 percent of the default quota limit, which means that if you set the default quota limit to 10 GB, you should set the warning limit to 9 GB. Tap or click OK.

7.Double-tap or double-click Log Event When Quota Limit Exceeded. Select Enabled so that limit events are recorded in the application log, and then tap or click OK.

8.Double-tap or double-click Log Event When Quota Warning Level Exceeded. Select Enabled so that warning events are recorded in the application log, and then tap or click OK.

9.Double-tap or double-click Apply Policy To Removable Media. Select Disabled so that the quota limits apply only to fixed media volumes on the computer, and then tap or click OK.

TIP To ensure that the policies are enforced immediately, access the Computer Configuration\Administrative Templates\System\Group Policy node, and then double-tap or double-click Configure Disk Quota Policy Processing. Select Enabled, and then select the Process even If The Group Policy Objects have Not Changed check box. Tap or click OK.

You can set NTFS disk quotas on a per-volume basis. Only NTFS volumes can have disk quotas. After you configure the appropriate group policies, you can use Computer Management to set disk quotas for local and remote volumes.

NOTE If you use the enforce Disk Quota Limit policy setting to enforce quotas, users are denied disk space if they exceed the quota. This overrides settings on the Quota tab on the NTFS volume.

To enable NTFS disk quotas on an NTFS volume, follow these steps:

1.Open Computer Management. If necessary, connect to a remote computer.

2.In the console tree, expand Storage, and then select Disk Management. The volumes configured on the selected computer are displayed in the details pane.

3.Using Volume List view or Graphical View, press and hold or right-click the volume with which you want to work, and then tap or click Properties.

4.On the Quota tab, select the Enable Quota Management check box, shown in Figure 4–7. If you already set quota management values through Group Policy, the options are unavailable and you can’t change them. You must modify options through Group Policy instead.
