Crispin, Lisa - Agile Testing - A Practical Guide for Testers and Agile Teams

Use the quadrants to help you identify the different types of automation tools you might need for each project, even for each iteration. We find it helpful to go through each quadrant and make a checklist of what tools might be needed. Let’s say we’re about to redesign a UI. We look at Quadrant 1. How can it be coded test-first? Do we know how to unit test our presentation layer? Do we need a new tool to help with that? Now on to Quadrant 2. We’ll need to do some prototyping; should we just use paper, or should we plan a Wizard of Oz type activity? What tool will we use to create executable business-facing tests to guide development? Do we have regression test scripts that will need updating or replacing? We know that one of our Quadrant 3 activities will be usability testing. That takes some advance planning. We might want tools to help track the users’ activities so we can analyze them further. Thinking about Quadrant 4, we realize that we have load test scripts that use the old UI, so we have to budget time to update them for the new one.

See Chapter 8, “Business-Facing Tests that Support the Team,” for more about Wizard of Oz testing.

As we emphasized in Part III, “Using the Agile Testing Quadrants,” the order of quadrants doesn’t relate to the order in which we do the testing. As we make our checklist of tools needed for each type of test, we think about when we want to test so we know when to have our automation tools ready. For example, a team designing a new architecture would plan to do a spike and run scalability test against it as soon as possible. They will need to spend time during the first iteration of the project finding and implementing a performance test tool.

The quadrants help us figure out what tools we might need, but with so many different automation options at different levels, a strategy for where to do which types of testing and how to organize the tests is essential. To deliver value quickly and often, our automation efforts need a high ROI. The test pyramid helps us optimize our test investment.

Test Automation Pyramid

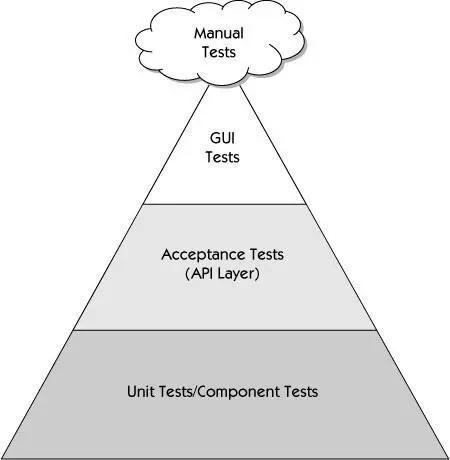

Figure 14-2 illustrates the “Test automation pyramid.” We like the version that Mike Cohn introduced, which shows the foundation layer made up of technology-facing unit and component tests. We recognize that many teams will struggle with this idea, because it seems the opposite of what many teams currently have. Many test teams have been taught the “V” model of testing, where activities such as component, system, and release testing are done in sequence after coding activities. Other teams have an inverted pyramid, with the majority of the tests in the functional or presentation layer.

Figure 14-2 Test automation pyramid

The agile test automation pyramid shows three different layers of automated tests. The lowest tier is the foundation that supports all of the rest. It’s mainly made up of robust unit tests and component tests, the technology-facing tests that support the team. This layer represents the bulk of the automated tests. They’re generally written in the same language as the system under test, using the xUnit family of tools. After a team has mastered the art of TDD, these tests are by far the quickest and least expensive to write. They provide the quickest feedback, too, making them highly valuable. They have the biggest ROI by far of any type of test.

In agile development, we try to push as many tests as possible to this layer. While business-facing tests tend to go in one of the higher levels, we implement them at the unit level when it makes sense. If they’re tests the customers don’t have to be able to read, and they can be coded much more quickly as unit tests, it’s a good option. Other types of technology-facing tests such as performance tests may also be possible at the unit level.

See Chapter 7, “Technology-Facing Tests that Support the Team” for more about unit and component tests.

The middle tier in the pyramid is the layer that includes most of the automated business-facing tests written to support the team. These are the functional tests that verify that we are “building the right thing.” The tests in this layer may include “story” tests, “acceptance” tests, and tests that cover larger sets of functionality than the unit test layer. These tests operate at the API level or “behind the GUI,” testing the functionality directly without going through the GUI. We write test cases that set up inputs and fixtures that feed the inputs into the production code, accept the outputs, and compare them to expected results. Because these tests bypass the presentation layer, they are less expensive to write and maintain than tests that use the interface.

See Chapter, 8, “Business-Facing Tests that Support the Team,” for more about business-facing tests that support the team.

We try to write them in a domain-specific language that the customers can understand, so they take more work than unit-level tests. They also generally run more slowly, because each test covers more ground than a unit test and may access the database or other components. The feedback they provide is not as quick as the unit-level tests, but it is still much faster than we could get operating through the user interface. Therefore, their ROI is not as high as the tests that form the base of the pyramid, but it’s higher than the top layer.

Fit and FitNesse are examples of tools used for the middle layer of the pyramid. Home-grown test harnesses that use spreadsheets or other business-friendly means for defining test cases are also common.

We have more about these tests in Chapter 8, “Business-Facing Tests that Support the Team,” and Chapter 9, “Toolkit for Business-Facing Tests that Support the Team,” where we discuss the business-facing tests that support the team and the tools that effectively capture these tests.

The top tier represents what should be the smallest automation effort, because the tests generally provide the lowest ROI. These tests are the ones done through the GUI, the ones that actually operate and manipulate the presentation layer. They are written after the code is completed, and so are usually written to critique the product and go directly to the regression suite.

These tests are traditionally more expensive to write, although there are new tools that help reduce the investment needed. Because components of the user interface tend to be changed often, these tests are much more brittle than tests that work at a functional or unit level. For example, just renaming HTML elements could cause a test script to fail. Operating through the user interface also slows these tests down, compared to tests in the lower levels of the pyramid that operate directly on production code. The tests in the top layer do provide important feedback, but a suite of GUI tests may take hours to run rather than the few minutes required for unit-level test suites. We want to minimize the number of tests at this layer, so they should only form the tip of the pyramid.

No matter how many automated tests they have, most systems also need manual testing activities, such as exploratory testing and user acceptance testing. We don’t want to forget these, so we’ve illustrated them with the little cloud at the tip of the pyramid. The bulk of our regression testing must be automated or our manual testing won’t give us a good return on investment either.

Patrick Wilson-Welsh [2008] adds a descriptive dimension to the test automation pyramid with a “three little pigs” metaphor. The bottom foundation layer is made of bricks. The tests are solid, and not vulnerable to the huffing and puffing of the Big Bad Wolf. The middle layer is made of sticks. They need rearranging more often than the brick layer to stay strong. The tests in the top layer are made of straw. It’s hard to get them to stay in place, and the wolf can easily blow them around. If we have too many tests made out of straw, we’re going to spend lots of time putting them back into shape.
