Human Communication Technology

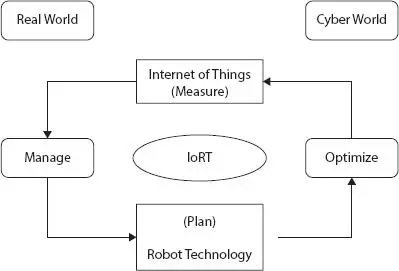

Figure 1.4 Platform of IoRT.

ii. Centralized Cloud Processing

The subsequent capacity has a place with this and it bolsters the distributed computing functionalities. This helps robotics to use highly oriented features, making it easier for robotics to exchange data, use data which can be deleted and unload their local appliances.

iii. Combining These Empowers an all the While Unified and Dispersed System

We expect to build up an IoRT stage by consolidating existing advances for example a blend of administrations comprising of an automated stage, an IoT stage and cloud administrations.

To plan a stage to empower no concurrently share data utilizing disseminated system of robots notwithstanding empower perception, stockpiling and preparing power utilizing incorporated cloud benefits progressively.

• Robot Operating System (ROS): It is a structure and Open source mechanical stage with huge programming libraries and apparatuses to create automated applications.

• Amazon Web Service (AWS) IoT center: A stage wherein Internet transport conventions is mindful to interface distinctive IoT gadgets.

• Function as a Service (FaaS): Collection, elimination, evaluation and simulation of cloud features, used as serverless administration.

• DynamoDB: A FaaS database giving stockpiling.

• AWS Lambda: Compute service for calculation condition giving handling power.

• Serverless: A common pool of equipment powerfully oversaw by an outsider cloud seller.

• Micro-administrations: Multiple FaaS cooperating to play out an errand.

• Service: A product usefulness, for example, a mechanical stage, an IoT stage, Amazon DynamoDB and AWS Lambda.

The IoRT phase structure consists of a mechanical stage, an IoT phase, cloud administration and related links. Figure 1.5shows the Service Oriented Test Platform to show how the connection is made from ROS to AWS.

i. Robot Operating System

ROS is a mechanical open-sourced system regularly utilized for structuring apply autonomy. It utilizes a distribute buy in informing design. There is an ace hub in each RO system to start a correspondence among distribute and buy in, empowering hubs to distribute and buy in to the themes/channels to which they are set. A hub in the system is a members, is capable to impart its data to different hubs utilizing depicted points/channels.

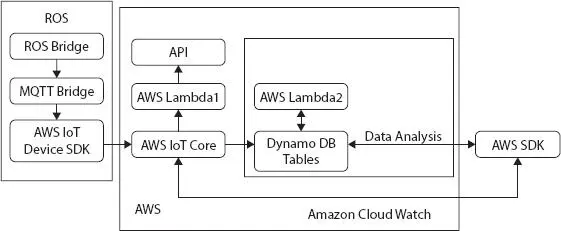

Figure 1.5 Service oriented test platform.

In Figure 1.6, the ROS Master builds up a shared association among the distributing and buying in hubs upon commencement, and persistently focuses for fresh out of the plastic new promotions. The association between the hubs is arrangement with concurred conveyance conventions, for example, TCPROS [14] or UDPROS [15].

ii. AWS IoT Core

AWS IoT Core [16] is an AWS IoT serverless interface that enables two-way interconnection between one to another gadget secure. As indicated by AWS [16] the stage can scale trillions of messages on request supporting billions of gadgets. AWS IoT center backings distribute/buy in informing design. MQTT is utilized as the correspondence convention. MQTT is given over Web Sockets, permitting any assistance to associate with the web of straps utilizing Web Sockets. IoT center additionally bolsters HTTP when clients present information on any point/channel and when the solicitation message incorporate data, the post utilizes demand/reaction message pattern [17].

But AWS IoT Core can easily be used to set up AWS, Amazon Lambda, Amazon Kinesis, Amazon S3, Amazon DynamoDB, Amazon CloudWatch, AWS CloudTrail, Amazon QuickSight or Alexa Voice Service, which assemble, process, disrupt, and monitor IoT applications built into your computers without a framework to which AWS IoT Core can be assigned.

iii. AWS Lambda

AWS Lambda [2, 18, 19] is a backend database framework for object transfer, with Amazon S3 buckets operating without any of the application in the cloud as a FaaS framework. Once code is inserted into AWS Lambda software, it is able to handle all the functionality, scaling, patching and network maintenance to execute the code and providing the performance monitoring by publishing in Amazon Cloud Watch real-time measurements. Cost of AWS Lambda is less, which means that the payment is made for the computation time. There is no need of new languages to be used in the framework so getting started to Lambda is easy. Any libraries of third parties can be included. The AWS Lambda code is the Lambda function. The code is to be uploaded in the code editor or in AWS Management console. We may also choose from the sample function list provided for normal use cases like encoding of images, processing of real-time files, filtering of data etc. When the code is loaded, pick the S3 bucket for AWS Event Source and the Lambda table is ready to start it in a couple of seconds. Some event with Lambda could cause the feature to make the application simple to implement.

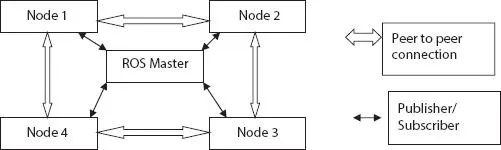

Figure 1.6 Illustrates the connection establishment.

An Event source is AWS administration or custom applications. Occasion source mapping is utilized for interfacing or mapping between occasion sources and the capacity of lambda can be either Synchronous Pull Invocation (stream-based) or Asynchronous Push Invocation (non stream-based).

Lambda limits license to change the figure resource, the memory entirety for the component and the most extraordinary runtime. The allotted memory corresponds to the speed limit for the CPU, the total capacity is between 128 and 3,008 MB.

iv. Amazon DynamoDB

The Amazon DynamoDB [20, 21] is the non-social management of the SQL serverless servers. The main focus and document storage provides millisecond output in one digit on any size. DynamoDB stores information in things comprising of a segment key, a sort key and traits. The essential key is made by segment key and sort key and the key worth must be exceptional. Character of everything depends on the essential key. It is a fully managed, multi-region, multimedia, durable database with built in internet security, backup and restoration and in-memory caching. DynamoDB handles 10 trillion requests every day and can process more than 20 million requests every second every day.

Most organizations such as Uber, Airbnb and Redfin in the world are the fastest rising companies and so are businesses such as Samsung, Nissan and Capital One, based on DynamoDB’s size and efficiency to sustain their workloads.

Tens of thousands of clients from AWS have chosen the smartphone, cloud, gamer, ad technology, IoT and other applications which have low-latency knowledge access at all dimensions from DynamoDB as their core value and document storage. Creates a new table and let DynamoDB manage the rest of the data.

v. Amazon CloudWatch

Amazon CloudWatch screens tools and software running on AWS regularly with the Amazon Web Services (AWS). CloudWatch can be used to capture and track measurements [22, 23] that are variables for the properties and applications that can be quantified.
