#define CFG_BASE_BAUD 691200

/* The following table includes the supported baudrates */

#define CFG_BAUDRATE_TABLE \

{1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400}

#define CFG_LOAD_ADDR 0x100000 /* default load address */

...

/* Memory Bank 0 (Flash Bank 0) initialization */

#define CFG_EBC_PB0AP 0x9B015480

#define CFG_EBC_PB0CR 0xFFF18000

#define CFG_EBC_PB1AP 0x02815480

#define CFG_EBC_PB1CR 0xF0018000

...

Listing 7-4 gives an idea of how U-Boot itself is configured for a given board. An actual board-configuration file can contain hundreds of lines similar to those found here. In this example, you can see the definitions for the CPU, CPU family (4xx), PLL clock frequency, serial port baud rate, and PCI support. We have included examples of configuration variables (CONFIG_XXX) and configuration settings (CFG_XXX). The last few lines are actual processor register values required to initialize the external bus controller for memory banks 0 and 1. You can see that these values can come only from a detailed knowledge of the board and processor.

Many aspects of U-Boot can be configured using these mechanisms, including what functionality will be compiled into U-Boot (support for DHCP, memory tests, debugging support, and so on). This mechanism can be used to tell U-Boot how much and what kind of memory is on a given board, and where that memory is mapped. The interested reader can learn much more by looking at the U-Boot code directly, especially the excellent README file.

U-Boot supports more than 60 standard command sets that enable more than 150 unique commands using CFG_* macros. A command set is enabled in U-Boot through the use of configuration setting (CFG_*) macros. For a complete list from a recent U-Boot snapshot, consult Appendix B, "U-Boot Configurable Commands." Here are just a few, to give you an idea of the capabilities available:

The following line of Listing 7-4 defines the commands enabled in a given U-Boot configuration, as driven by the board-specific header file:

#define CONFIG_COMMANDS (CONFIG_CMD_DFL | CFG_CMD_DHCP)

Instead of typing out each individual CFG_* macro in your own board-specific configuration header, you can start from a default set of commands predefined in the U-Boot source. The macro CONFIG_CMD_DFL defines this default set of commands. CONFIG_CMD_DFL specifies a list of default U-Boot command sets such as tftpboot (boot an image from a tftpserver), bootm (boot an image from memory), memory utilities such as md (display memory), and so on. To enable your specific combination of commands, you can start with the default and add and subtract as necessary. The example from Listing 7-4 adds the DHCP command set to the default. You can subtract in a similar fashion:

#define CONFIG_COMMANDS (CONFIG_CMD_DFL & ~CFG_CMD_NFS)

Take a look at any board-configuration header file in .../include/configs/ for examples.

Many bootloaders include support for Ethernet interfaces. In a development environment, this is a huge time saver. Loading even a modest kernel image over a serial port can take minutes versus a few seconds over a 10Mbps Ethernet link. Furthermore, serial links are more prone to errors from poorly behaved serial terminals.

Some of the more important features to look for in a bootloader include support for the BOOTP, DHCP, and TFTP protocols. For those unfamiliar with these, BOOTP (Bootstrap Protocol) and DHCP (Dynamic Host Control Protocol) are protocols that enable a target device with an Ethernet port to obtain an IP address and other network-related configuration information from a central server. TFTP (Trivial File Transfer Protocol) allows the target device to download files (such as a Linux kernel image) from a TFTP server. References to these protocol specifications are listed at the end of this chapter. Servers for these services are described in Chapter 12, "Embedded Development Environment."

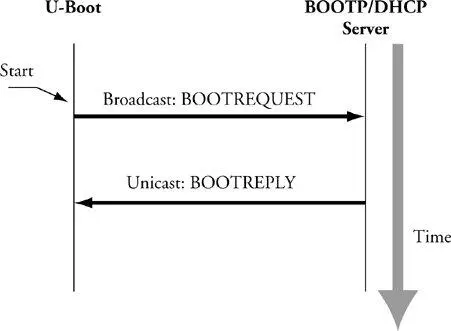

Figure 7-1 illustrates the flow of information between the target device and a BOOTP server. The client (U-Boot, in this case) initiates a broadcast packet searching for a BOOTP server. The server responds with a reply packet that includes the client's IP address and other information. The most useful data includes a filename used to download a kernel image.

Figure 7-1. BOOTP client/server handshake

In practice, dedicated BOOTP servers no longer exist as stand-alone servers. DHCP servers included with your favorite Linux distribution also support BOOTP protocol packets.

The DHCP protocol builds upon BOOTP. It can supply the target with a wide variety of configuration information. In practice, the information exchange is often limited by the target/bootloader DHCP client implementation. Listing 7-5 contains an example of a DHCP server configuration block identifying a single target device. This is a snippet from a DHCP configuration file from the Fedora Core 2 DHCP implementation.

Listing 7-5. DHCP Target Specification

host coyote {

hardware ethernet 00:0e:0c:00:82:f8;

netmask 255.255.255.0;

fixed-address 192.168.1.21;

server-name 192.168.1.9;

filename "coyote-zImage";

option root-path "/home/chris/sandbox/coyote-target";

}

...

When this DHCP server receives a packet from a device matching the hardware Ethernet address contained in Listing 7-5, it responds by sending that device the parameters in this target specification. Table 7-1 describes the fields in the target specification.

Table 7-1. DHCP Target Parameters

When the bootloader on the target board has completed the BOOTP or DHCP exchange, the parameters described previously are used for further configuration. For example, the bootloader uses the target IP address to bind its Ethernet port with this IP address. The bootloader then uses the server-name field as a destination IP address to request the file contained in the filename field, which, in most cases, represents a Linux kernel image. Although this is the most common use, this same scenario could be used to download and execute manufacturing test and diagnostics firmware.
