Number of Gap Ack Blocks - bit 96-111. The number of Gap Ack Blocks listed in this chunk. Each Gap Ack Block takes up 32 bits in the chunk.

Number of Duplicate TSNs - bit 112-127. The number of DATA chunks that has been duplicated. Each duplicated TSN is listed after the Gap Ack Blocks in the chunk, and each TSN takes 32 bits to send.

Gap Ack Block #1 Start - bit 128-143. This is the first Gap Ack Block in the SACK chunk. If there are no gaps in the received DATA chunk TSN numbers, there will be no Gap Ack Blocks at all. However, if DATA chunks are received out of order or some DATA chunks where lost during transit to the host, there will be gaps. The gaps that has been seen will be reported with Gap Ack Blocks. The Gap Ack Block start point is calculated by adding the Gap Ack Block Start parameter to the Cumulative TSN value. The calculated value is the start of the block.

Gap Ack Block #1 End - bit 144-159. This value reports the end of the first Gap Ack Block in the stream. All the DATA chunks with the TSN between the Gap Ack Block Start and the Gap Ack Block End has been received. The Gap Ack Block End value is added to the Cumulative TSN, just as the Start parameter, to get the actual last TSN of the block chunks to be Acknowledged.

Gap Ack Block #N Start - bits variable. For every Gap Ack Block counted in the Number of Gap Ack Blocks parameter, one Gap Ack Block is added, until the final N block. Ie, if Number of Gap Ack Blocks = 2, then there will be two Gap Ack Blocks in the SACK chunk. This is the last one simply, and contains the same type of value as the Gap Ack Block #1 Start.

Gap Ack Block #N End - bits variable. Same as for the Gap Ack Block #N End, but for the end of the gap.

Duplicate TSN #1 - bits variable. These fields report a duplicate TSN, in which case we have already received a specific chunk, but receive the same TSN several times more. This can either be router glitches (retransmitting already sent data) or a case of retransmission from the sending endpoint, or a score of other possibilities. Each instance of a duplicate TSN should be reported once. For example, if 2 duplicate TSN's has been received after acknowledging the first one, each of these duplicate TSN's should be sent sent in the next SACK message that is being sent. If even more duplicate TSN's should appear after this second SACK is sent, the new duplicates should be added in the next SACK, and so on.

Duplicate TSN #X - bits variable. This is the last duplicate TSN parameter, containing the same type of information as the first parameter.

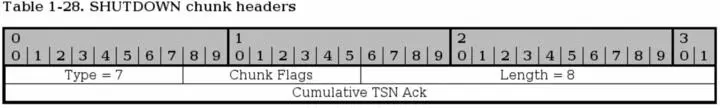

The SHUTDOWN chunk is issued when one of the endpoints of a connection wants to close the current association. The sending party must empty all of its sending buffers before sending the SHUTDOWN chunk, and must not send any more DATA chunks afterwards. The receiver must also empty its sending buffers and must then send the responding SHUTDOWN ACK chunk.

Type - bit 0-7. This header is always set to 7 for SHUTDOWN chunks.

Chunk flags - bit 8-15. Not used today. Might be applicable for change. See SCTP Common and generic headers for more information.

Chunk Length - bit 16-31. The chunk length is the length of the whole packet, including the Cumulative TSN Ack parameter. The length of the SHUTDOWN chunk should always be 8.

Cumulative TSN Ack - bit 32-63. This is a Cumulative TSN Ack field, just the same as in the SACK chunk. The Cumulative TSN Ack acknowledges the last TSN received in sequence from the opposite endpoint. This parameter does not, nor can the rest of the SHUTDOWN chunk either, acknowledge Gap Ack Blocks. The lack of a Gap Ack Block in the SHUTDOWN chunk that was acknowledged before should not be interpreted as if the previously acknowledged block was lost again.

The SHUTDOWN ACK chunk is used to acknowledge a SHUTDOWN chunk that has been received. Before the SHUTDOWN ACK chunk is sent, all data in the sending buffers should be sent, but the buffers must not accept any new data from the application. SCTP does not support half-open connections as TCP does.

Type - bit 0-7. This header is always set to 8 for SHUTDOWN ACK chunks.

Chunk flags - bit 8-15. Not used today. Might be applicable for change. See SCTP Common and generic headers for more information.

Chunk Length - bit 16-31. The chunk length is the length of the whole chunk. The length of the SHUTDOWN ACK chunk should always be 4.

The SHUTDOWN COMPLETE chunk is sent, by the originating host of the SHUTDOWN, in response to the SHUTDOWN ACK chunk. It is sent to acknowledge that the association is finally closed.

Type - bit 0-7. Always set to 14 for SHUTDOWN COMPLETE chunks.

Reserved - bit 8-14. Not used today. Might be applicable for change. See SCTP Common and generic headers for more information.

T-bit - bit 15. The T-bit is not set to signal that the sending host had a Transmission Control Block (TCB) associated with this connection and that it destroyed. If the T-bit was set, it had no TCB to destroy.

Length - bit 16-31. This is always set to 4 for SHUTDOWN COMPLETE chunks, since the chunk should never be any larger, as long as no updates to the standards are made.

TCP/IP has grown in complexity quite a lot when it comes to the routing part. In the beginning, most people thought it would be enough with destination driven routing. The last few years, this has become more and more complex however. Today, Linux can route on basically every single field or bit in the IP header, and even based on TCP, UDP or ICMP headers as well. This is called policy based routing, or advanced routing.

This is simply a brief discussion on how the destination driven routing is performed. When we send a packet from a sending host, the packet is created. After this, the computer looks at the packet destination address and compares it to the routing table that it has. If the destination address is local, the packet is sent directly to that address via its hardware MAC address. If the packet is on the other side of a gateway, the packet is sent to the MAC address of the gateway. The gateway will then look at the IP headers and see the destination address of the packet. The destination address is looked up in the routing table again, and the packet is sent to the next gateway, et cetera, until the packet finally reaches the local network of the destination.

As you can see, this routing is very basic and simple. With the advanced routing and policy based routing, this gets quite a bit more complex. We can route packets differently based on their source address for example, or their TOS value, et cetera.

This chapter has brought you up to date to fully understand the subsequent chapters. The following has been gone through thoroughly:

• TCP/IP structure

• IP protocol functionality and headers.

• TCP protocol functionality and headers.

• UDP protocol functionality and headers.

• ICMP protocol functionality and headers.

• TCP/IP destination driven routing.

All of this will come in very handy later on when you start to work with the actual firewall rulesets. All of this information are pieces that fit together, and will lead to a better firewall design.
